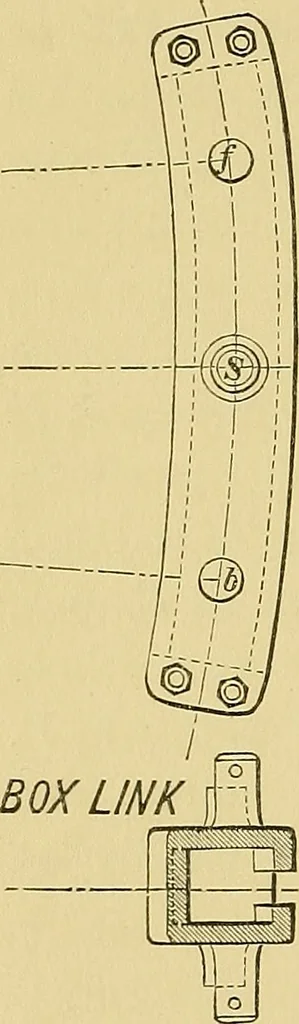

point beyond the link arc, de-termined by placing the link in the \stroke cut-off positions, Nos. 3 and 4, and plotting the centre line J as in Fig. 32. When, however, the box link is used in place of Link No. 2, the centre of suspension S generally falls within the link arc, or between it and the… … STATIONARY LINK This form of connection between the valve and eccen-trics is specially applicable to those circumstances in whichthe former requires no rocker. The mutual relation ■ ofthe parts will be clearly perceived from an examinationof Fig. 44 which illustrates one of the most…
