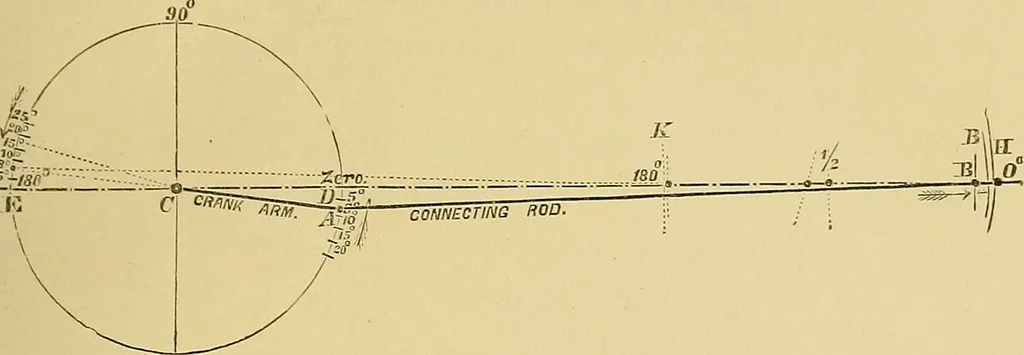

connecting rodA B, fit loosely upon the crank and cross-head pins, that thecrank moving in the direction indicated by the arrow, hasreached a location C A within 8 degrees of the zero, and thatthe piston (on account of the lost motion in the boxes) ^allsshort of its true position B, a distance B B.… … of its own momentum continue moving in the direction ofH until all the lost motion being expended, its progress issuddenly checked and it is itself again brought under thecontrol of the connecting rod, which then draws it forwardupon the return stroke. These concussions are reproducedat the end of…
