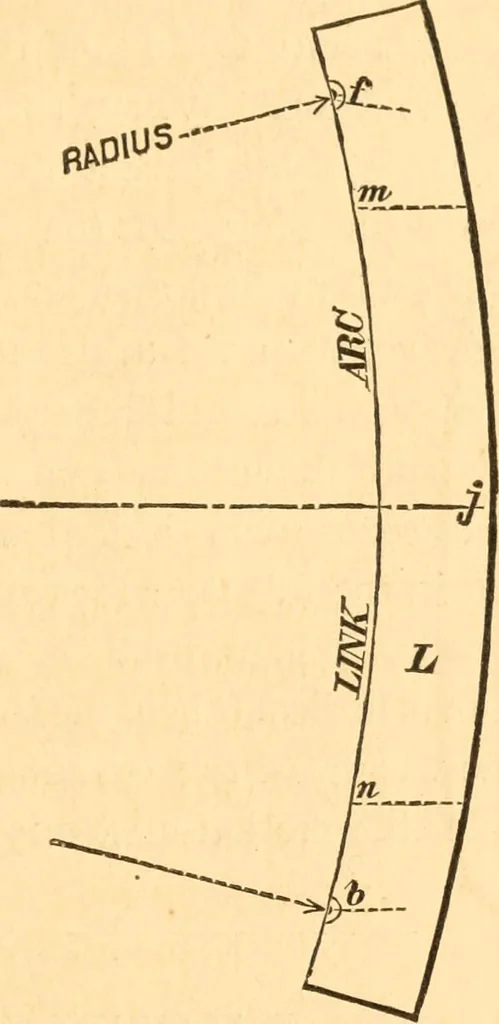

LINK NO. II. 129 was elevated to the position /, making the distance T lessthan R. If, however, the greatest crank angles had occu-pied this position, the element / would have been removed Fig. 41. … to some line /4 nearer the shaft, while the link would havebeen depressed and slip increased in the endeavor to makeT=R. But the equality of these terms is established whenthe link arc passes through the centres of the eccentric rodpins ; hence, a Box Link, having its pins over the work-ing points…
