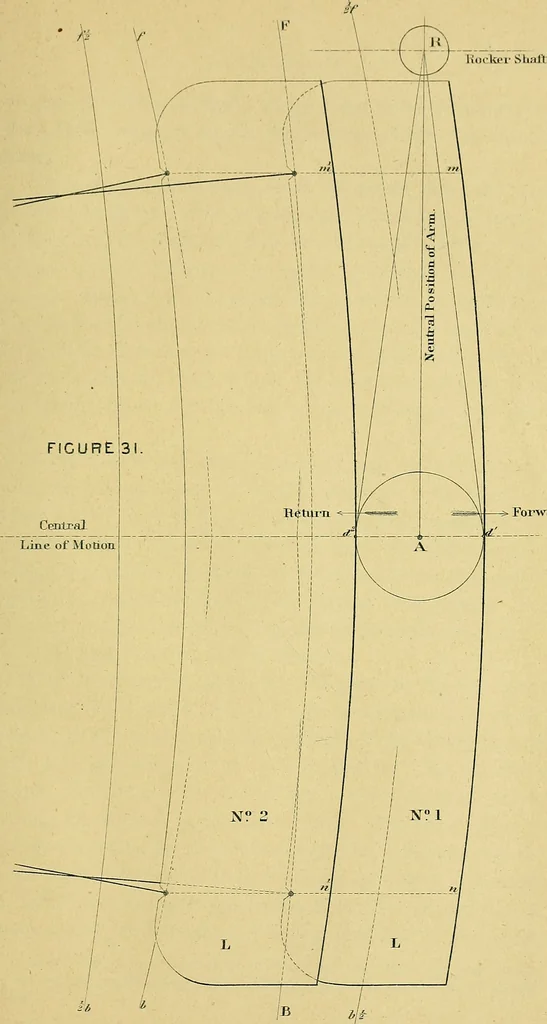

imum value at the \ stroke of the piston,hence the importance of examining the link motion withspecial reference to the J stroke cut-off. Although appropriateangles for the crank have been furnished in the Stroke Table,it is thought best for facility of reference to here reproducethem in a more… … Forward LINK NO. I. 91 of the eccentrics, we pass to the other sheet of paper andtrace their influence on the proportions of the link attach-ments. Since the assumed distance of the rocker from the shaftis 49-} and the eccentric rod pins are withdrawn 3 back ofthe link arc, the length of each rod…
