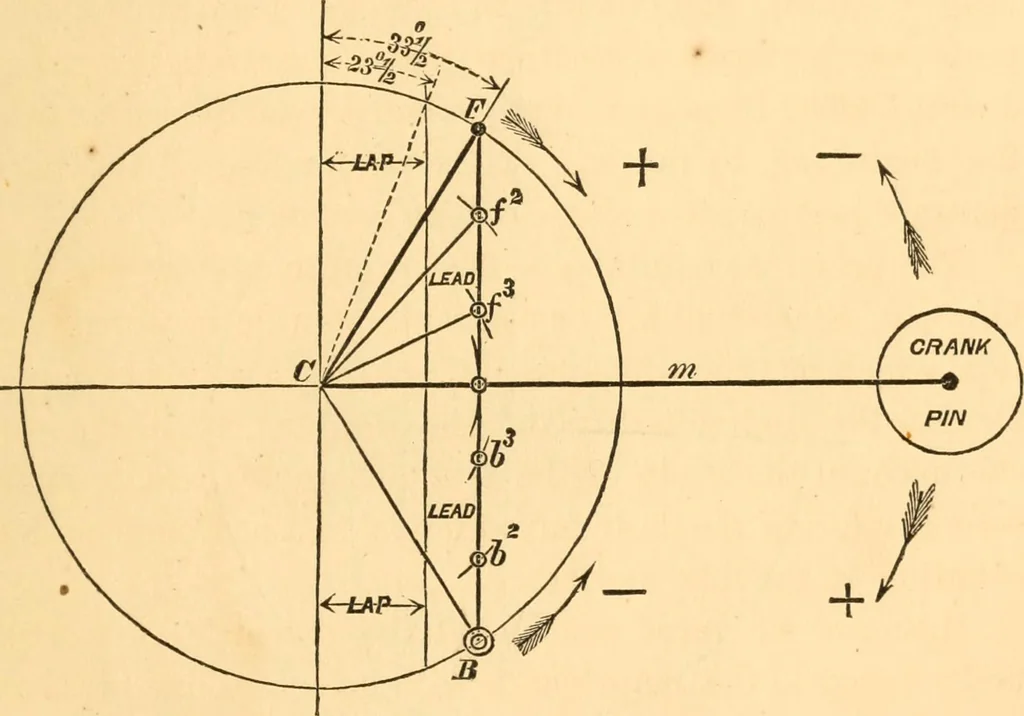

c, slip it around the shaft and secure its throw in aposition C B, opposite to that of C F. But if in addition to a change of direction a variation inthe cut-off for the forward and back motions of the crankwere demanded, subject to the single condition that the leadopening and lap shall remain… … means the throw of the eccentric and consequently thetravel of the valve would be reduced between F, the fullgear forward of the eccentric, and B the full gear back, whilethe minumum value would lie at the point M midwaybetween these extremes, or at the mid gear of the eccentric.When the eccentric…
