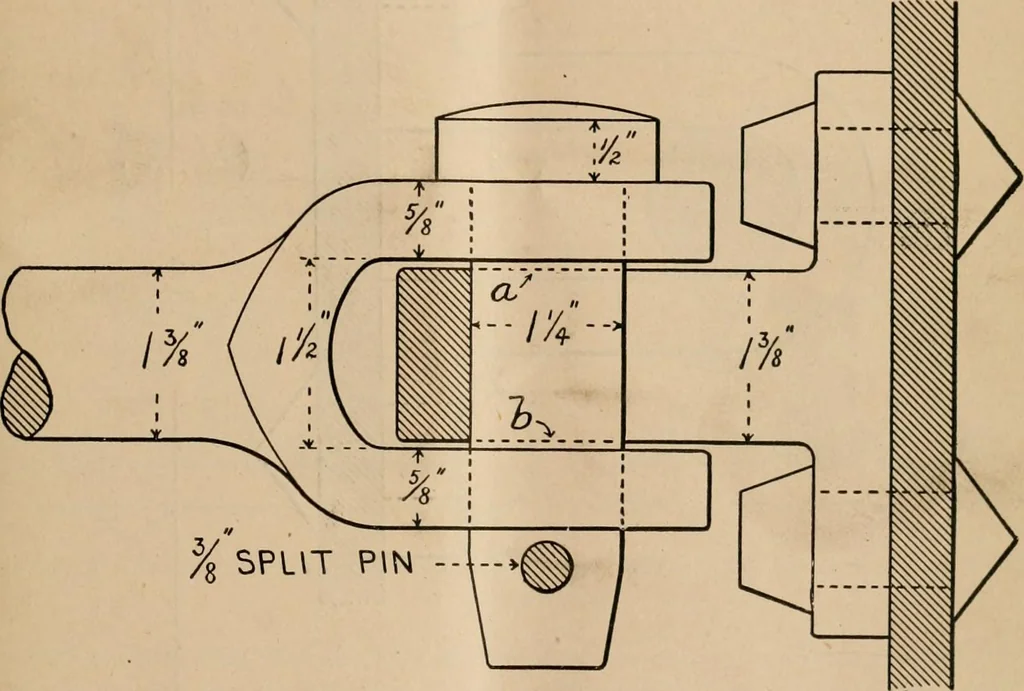

I. HARTFORD, CONN., AUGUST, 1901. ZbutXo. 3. On the Strength of Brace Pins. An esteemed correspondent has sent us a sketch of the brace fastening shown inFigs. 1 and 2, all the dimensions being marked upon it, except the diameter of the pin;and he has requested us to calculate the size of the pin,… … Fig. 1. — Illustrating the Jaws, Lug, and Pin. be considered. We have thought that this problem might be of sufficient interest to bediscussed in The Locomotive. The way in which a brace pin gives out will depend upon the proportions of thepin, and of the parts which it unites. If the ear (or lug)…
