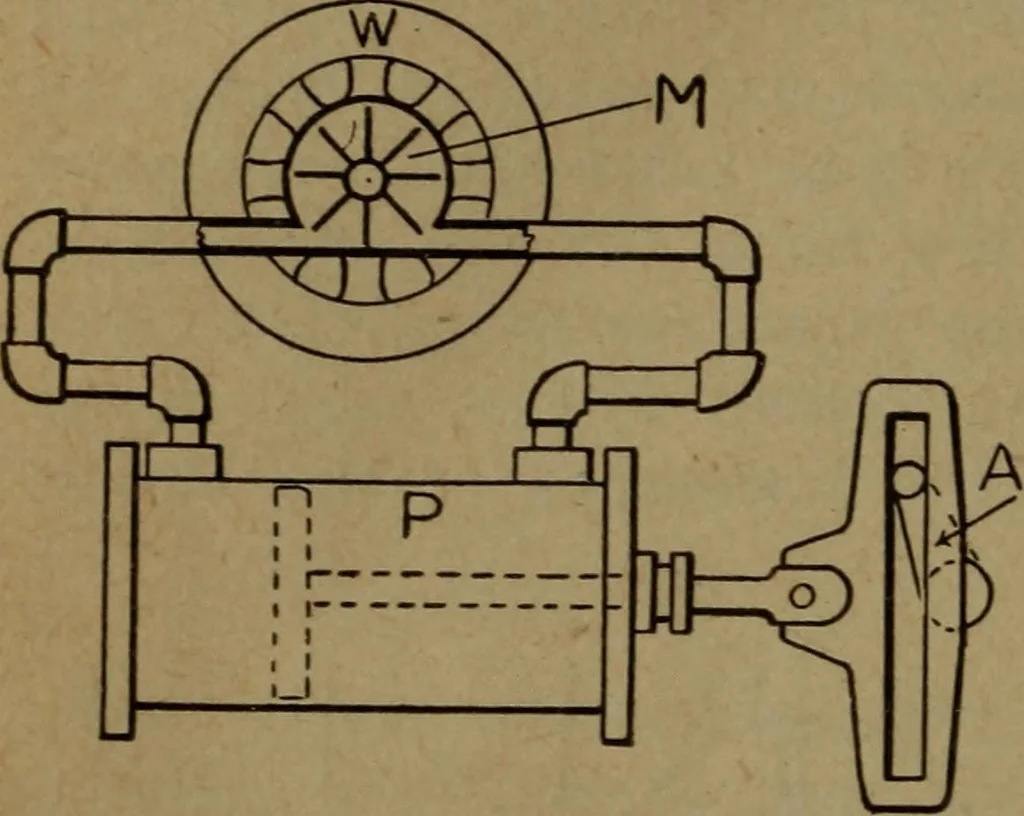

nt required to produce this cur-rent is equal to (IR) and varies directly as the current orpasses through corresponding values at the same time. Thecurrent and e.m.f. will, as a result, be in phase, and the curve(Er) represents the impressed e.m.f. required to produce thecurrent (I). 379. Hydraulic… … Fig. 279 alternating pressure that is created by the pump (P), then aninductance in such a circuit can be represented by a fluidmotor (M) similar to that shown in the figure. When such a motor is connected inthe circuit, considerabletime will be required forthe current of liquid toreach a maximum…
