A practical course in mechanical drawing for individual study and shop classes, trade and high schools (1912)
Willard, William Franklin, 1879- · Chicago : Popular mechanics company · leaf 148

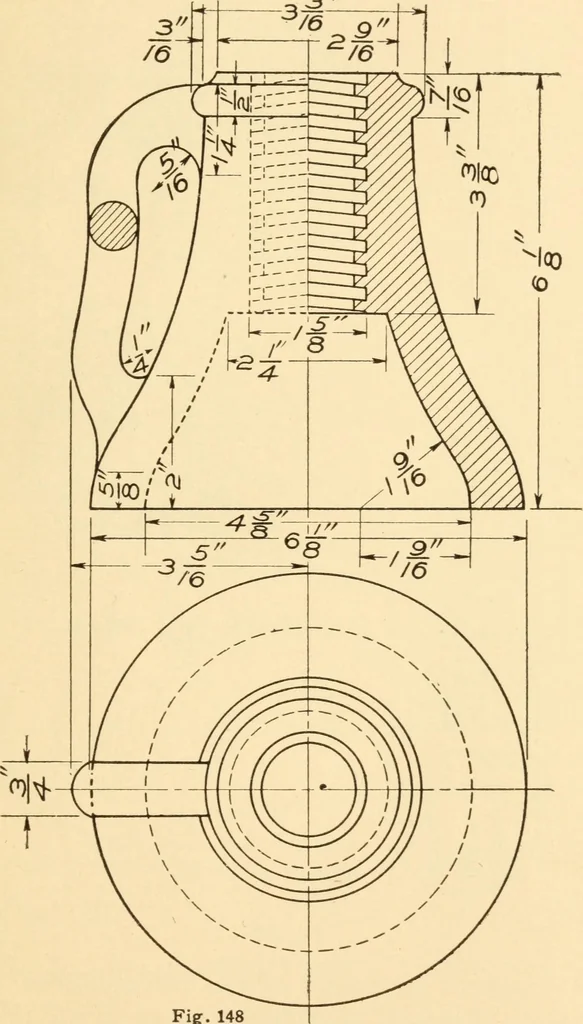

e assuggested. Use suitable diameters in each case andsection. Problem 19.—Make an isometric drawing of themission footstool as shown in Fig. 152. INTERSECTIONS AND PENETRATIONS Problem 20.—The three views of a stub end of aconnecting rod are shown in Fig. 153. To find thecurve of intersection, of… … Fig. 148 146 A PRACTICAL COURSE IN /^
