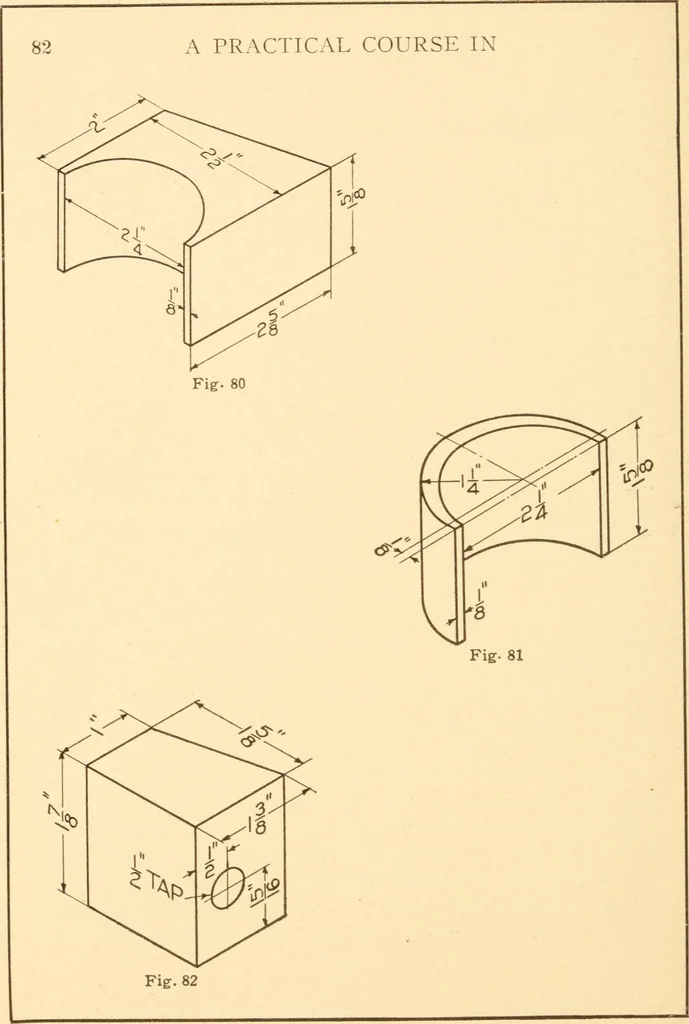

bearing which sur-round the cross-head pin and fit in the left-hand endof the rod. Fig. 87. Fig. 82 is a tapered key-block usedto take up wear and is located behind Fig. 80. Figs. 83and 84 are parts of the bearing which fit around thecrank-pin and are located on the right end of therod. Fig. 87. A…
