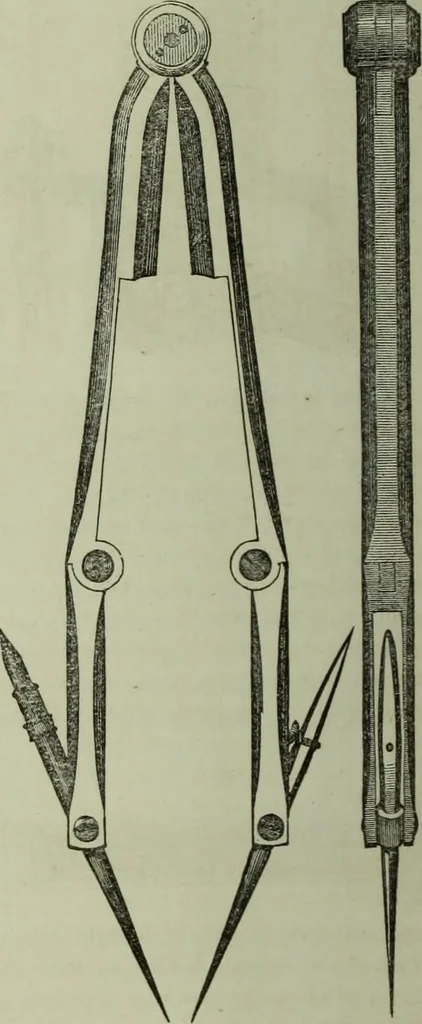

so be observed that the centre point is a needle,held by a small screw, in a socket formed in the leg of theinstrument. This arrangement affords a means of adjustmentas to length, whilst the point can easily be replaced if acci-dentally broken. Compasses of the larger size are sometimesmade with… … Flg. 14. size and strength, isless liable to injury.Both legs of the bow-pen compasses arejointed. Fig. 19 is afront elevation of aninstrument preciselysimilar to the last, ex-cept that it has a pen-cil instead of a pen.These compasses re-quire to be adjusted to any desired radius by the direct…
