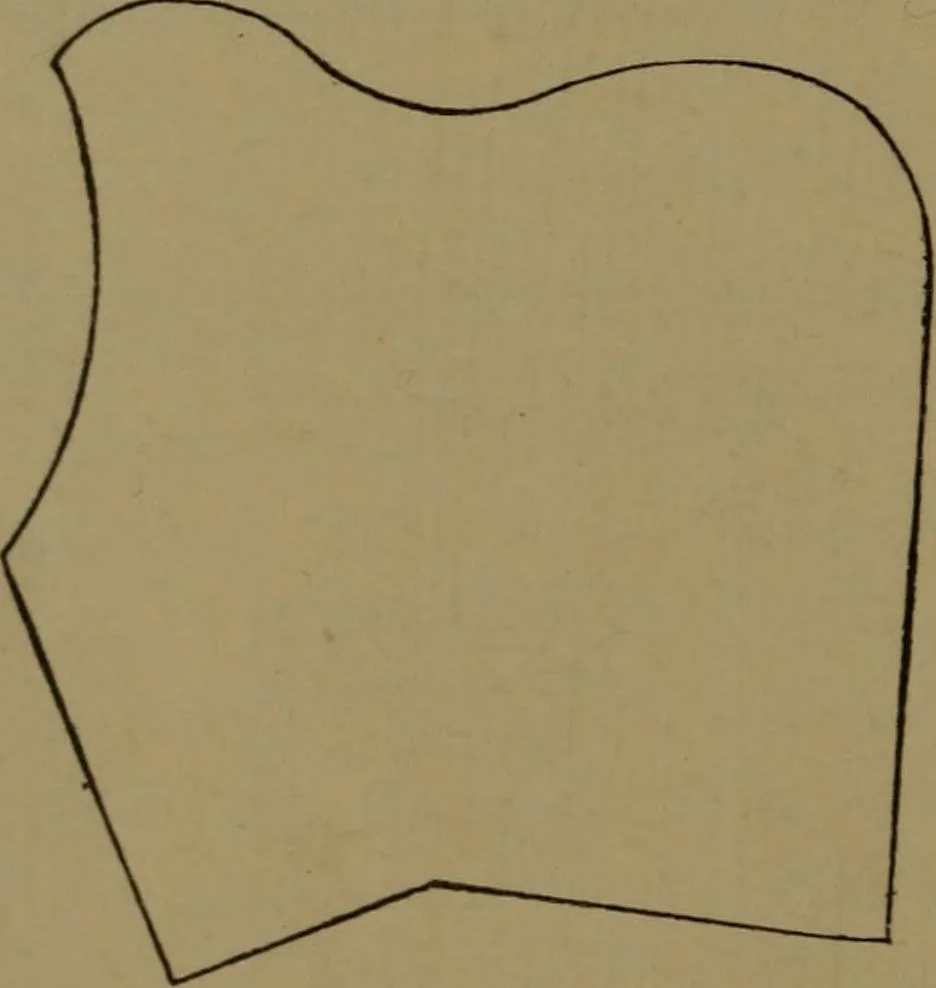

straight rect-angular outlines, no particular difficulty is experienced, bubwhen the outline is irregular a beginner may be rather at aloss to know how to proceed. For instance, the outline (Fig.221) would be copied as shown in Fig. 222. First a horizontalline is drawn from point A, then an arc a 5…
