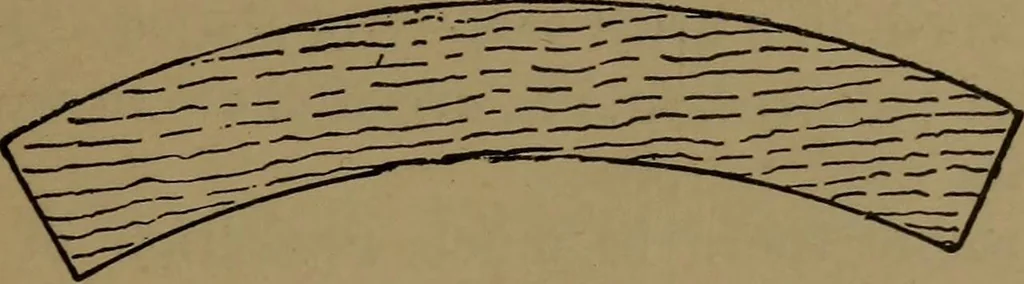

s, this instrument can be adjusted tovarying radii, but if the strip be bent beyond a moderate extentthe curve loses its circular character and becomes approximatelyparabolic. For inking-in large curves, such as those of elliptical arches,splines are very useful. These may be made of lancewood,… … Fig. 48.—Eailway Curve. wood, or ebonite, with radii varying from 1^ in. to 240 in., eachcurve being numbered according to its radius in inches. Theseare also useful for setting out flat curves, such as those of camber
