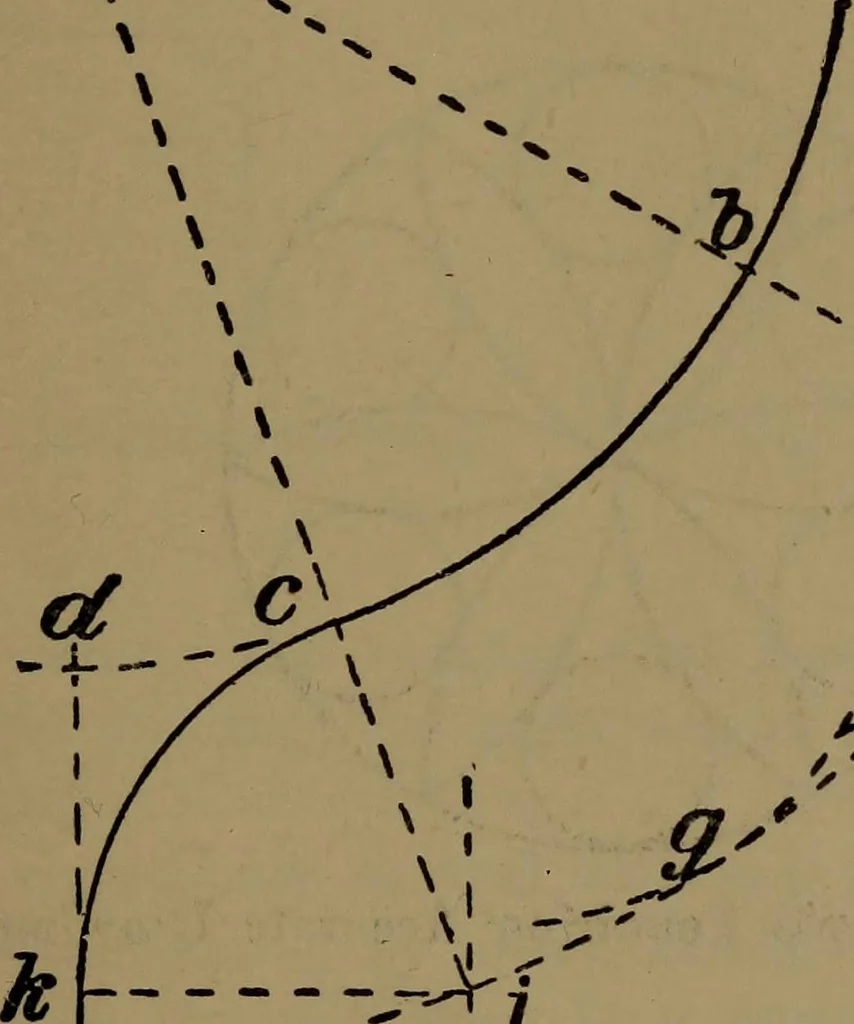

the curve exactly fits the straightlines, which is of course what the draughtsman should aim at. A more advanced example, such as would occur in fitting acurve between the arm and boss of wheel, is shown at Fig. 96 DRAWING CIRCULAR LINES, 59 Let a be the centre of the wheel, a h the radius of the… … / / 7,J l /I/ • Fig. 96. —Curves Joining Arms and Boss of Wheel. the straight line, draw short arcs as shown at f g, h i. Thendraw a straight line tangent to the two arcs from the line, andwith the compasses a concentric arc tangent to the two smallarcs from the curve. Where this new line and curve…
