Practical draughtsmen's work, with numerous engravings and diagrams (1903)
Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 65

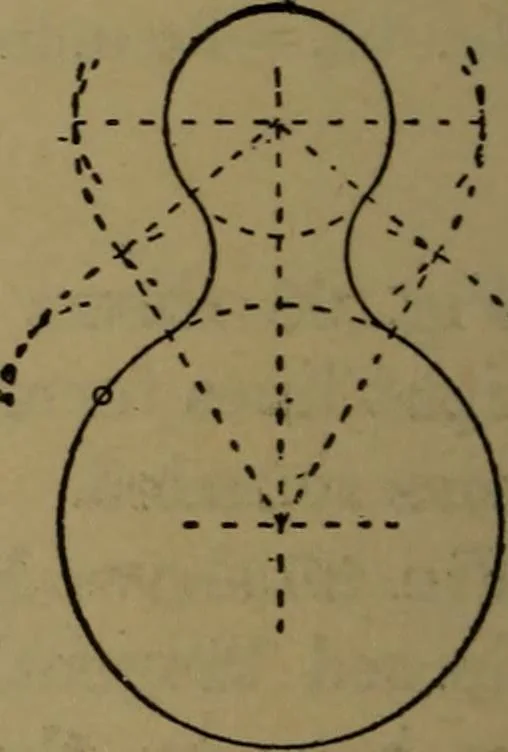

Fig. 101. Fig. 102. Fig. 103. Figs. 101 to 103.—Examples of Curved Lines as Junctions. smaller curve. In this example, after drawing the given straightline and circle, set the compasses to the required radius, and fromany point on the circumference of the circle describe a short arcoutside it. From…
Mechanical drawing
