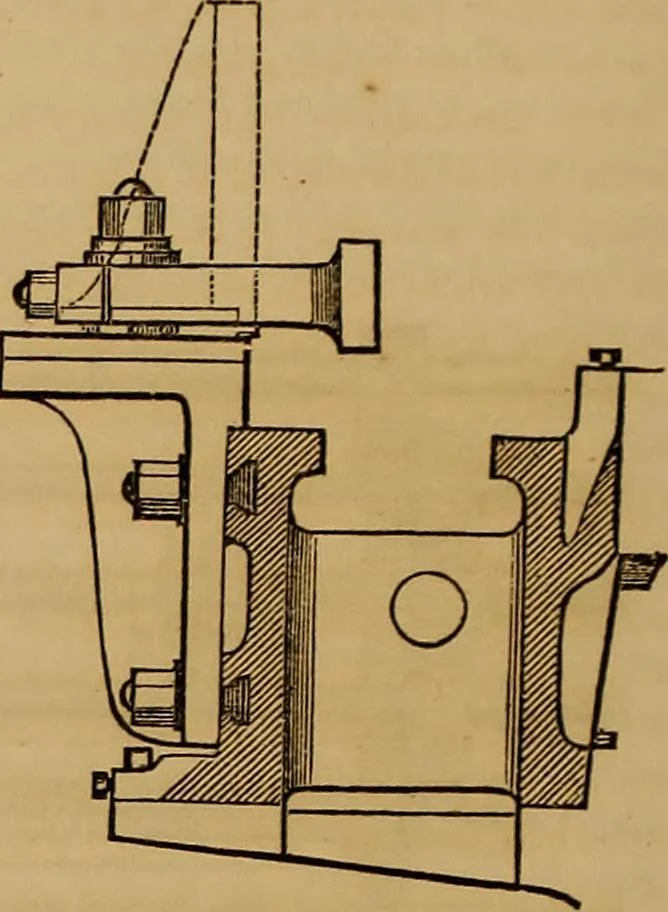

n,out of gear by means of an eccentric, whilst i and H are connectedby change-wheels. In the same way, face-cams and other formsmay be shaped by varying the connections. Angular and diagonal work in any position may also be workedin this lathe vidthout tilting the tool, by means of the same set…
