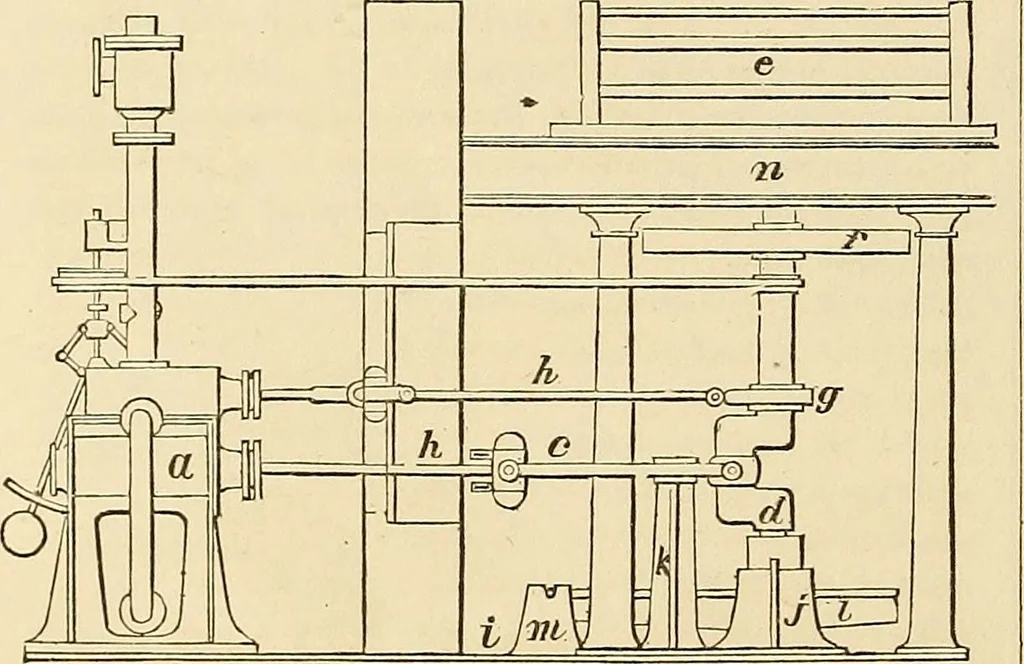

cylinder, and h the piston-rod, connected by a pair of connecting-rods, c, with the crank-shaft, d, which forms the axis of the uppermillstone, e. The joints that unite the ends of the rods, c, withthe piston-rod and crank-shiift are universal. The shaft, d, isprovided with a fly-wheel,/, which…
