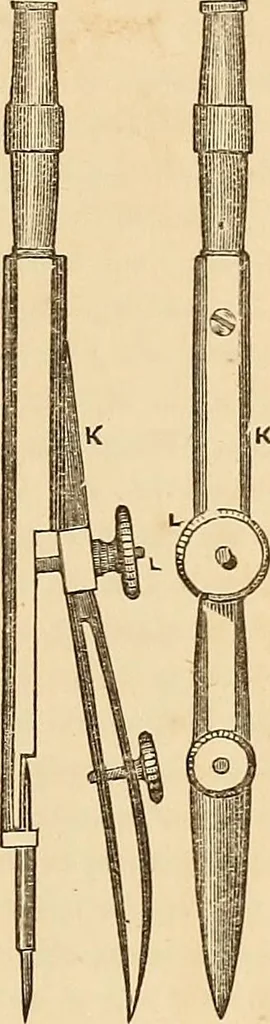

at accuracy and minuteness is calledfor, it will often be found a very tedious matter to obtain a true 1adjustment in this manner, particularly if the joints of the instru-ment are not in perfect working condition. This difficulty is gotover in what are termed spring, or screw bow compasses. BOOK… … Fig. 22. very small circles, of half or three quarters of an inch in radius atthe most. In the example we have selected for illustration, thecentre leg is of brass, or German silver, and is in one piece withthe milled handle. It is also providedwith a needle point. The pen is madewith a…
