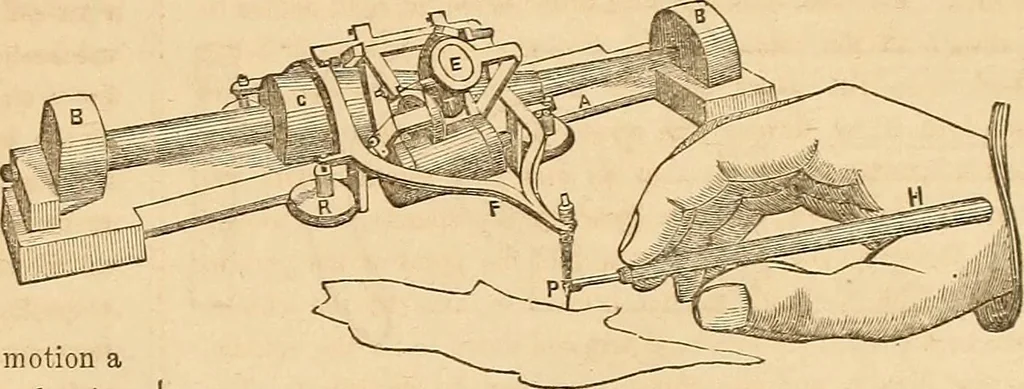

ing-point, i\ to which the handle, u. isattached by a universal joint. The frame, r,al60 carries a wheel, i,which, by means of a weight, is pressed on the surface of thecone, and receives motion from it as (lie tracer is carried along the paper. The index-wheel, i, only touches the cone by a… … these divisions is the T J ffth part of a square inch; so that one turnof the wheel represents 20 inches. Another index wheel, t,moved by i, is divided into five parts, each of which represents20 inches, so that a complete revolution of T values 100 inches.The eye-glass, e, assists in reading the…
