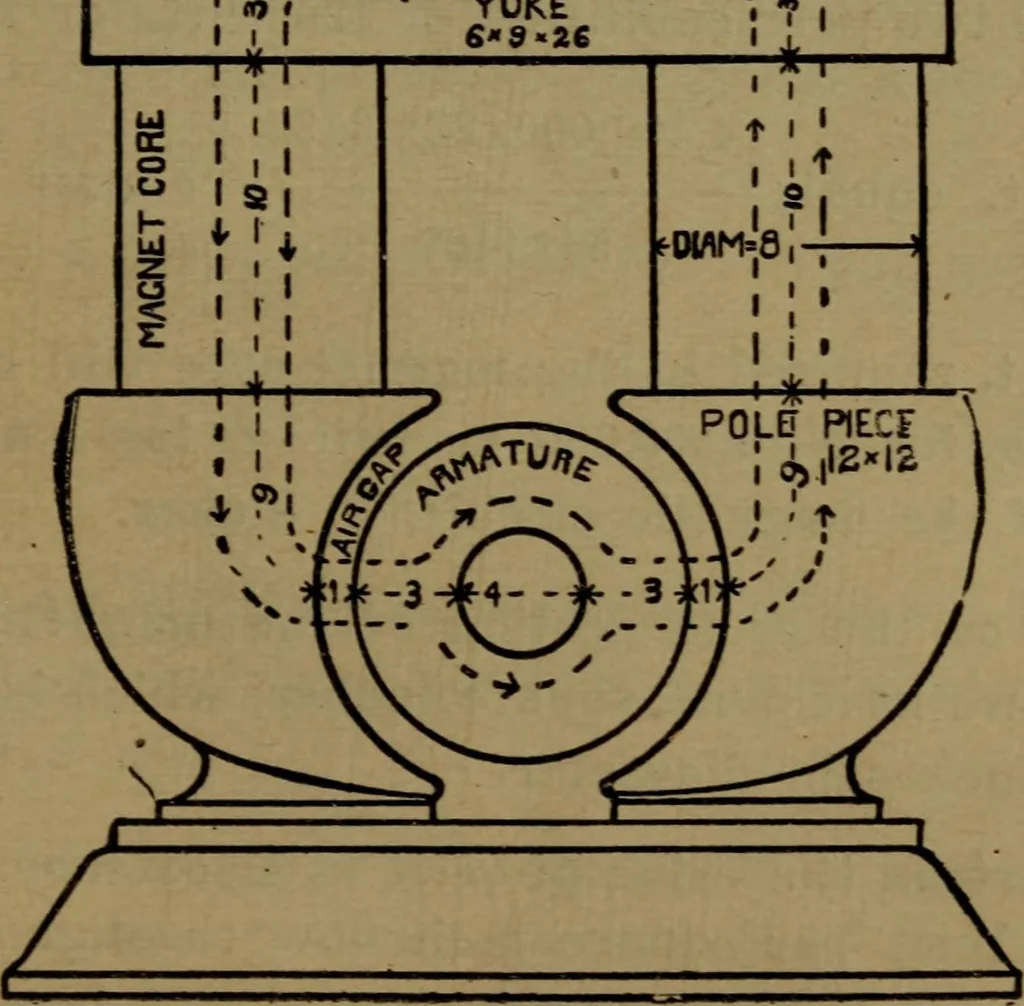

pole piece, then that required in each air gap and lastthat required in the armature iron. In Fig. 28 the dimensions of the parts have been indi-cated and the approximate length of the average magneticline is shown. Let us suppose that 4,500,000 magnetic linesflow through the magnetic circuit of… … Figure 28Magnetic circuit of Edison bipolar dynamo. b2 which N equals the total flow of magnetic lines in the partof the magnetic circuit considered, 1 equals length in inchesof this part of the magnetic circuit, A equals area in squareinches of this part of the magnetic circuit; // equals…
