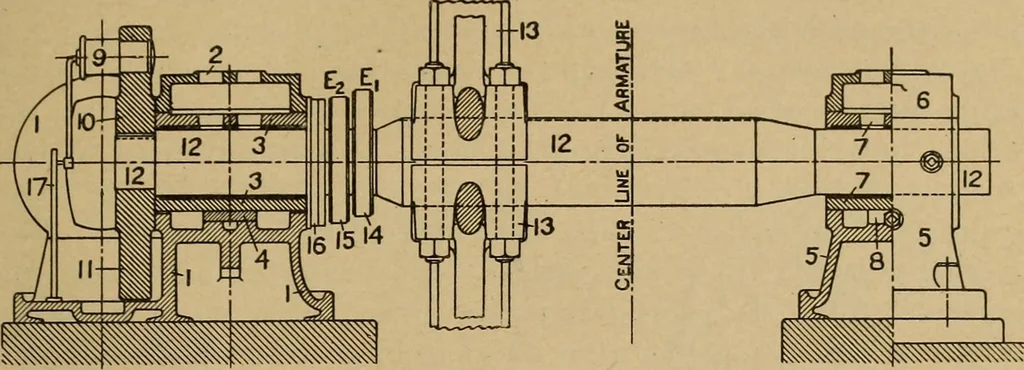

heirrapid acceleration in alternate directions have a very considerable effectupon the force action in the engine. § 2 (e)] CONSTRUCTION AND WORKING OF THE ENGINE. 11 (e) Crank Shaft and Wheels. — In Fig. 7 the shaft with insidecrank is a soHd -forging, having the crank pin of the same diameter… … Fig. 8. — Engine in Fig. 3, Cross Section at Bearings. 1. Engine bed. 7. Bearing shells. 13. Balance wheel. 2. Main bearing cap. 8. Adjusting wedge. 14. Steam eccentric. 3. Bearing shells. 9. Crank pin. 15. Exhaust eccentric 4. Adjusting wedge. 10. Crank disc. 16. Governor pulley. 5. Outboard…
