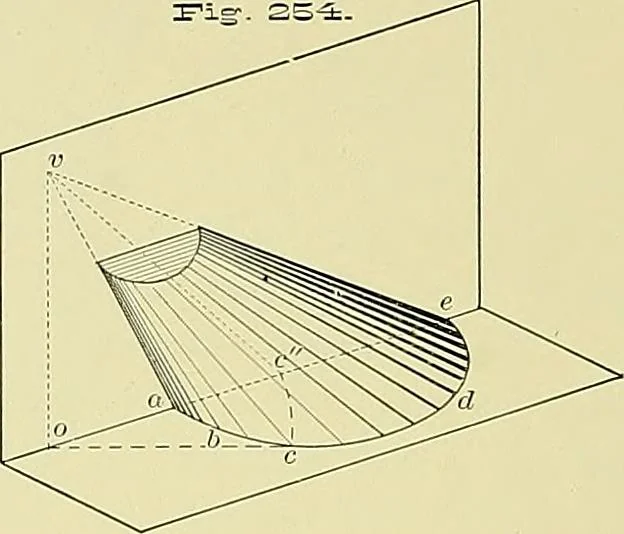

For the development take some point v, and from.it as a centre draw arcs having for radii theascertained lengths of the edges. Letting v.^A represent the initial edge of the development take Aas a centre, ad as a radius, and cut the arc of radius v^d at D; then Av,D is the development ofthe face…
