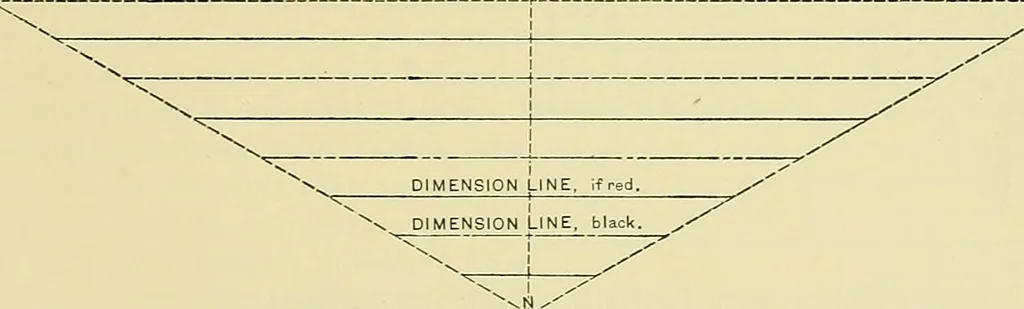

mechanical drawdng are indicated in the figure below.While getting his elementary practice with the ruling-pen the student may group them as shown,or in any other symmetrical arrangement, either original with himself or suggested by other designs. Lgr- 33. -t- CENTRE LINE. If red. CENTRE UlNE. If… … When drawing on tracing cloth or tracing jjaper, for the purpose of making blue-prints, all thelines wiU preferably be black, and the centre and dimension lines distinguished from others as indi-cated above, as also by being somewhat finer than those employed for the light outlines of theobject.…
