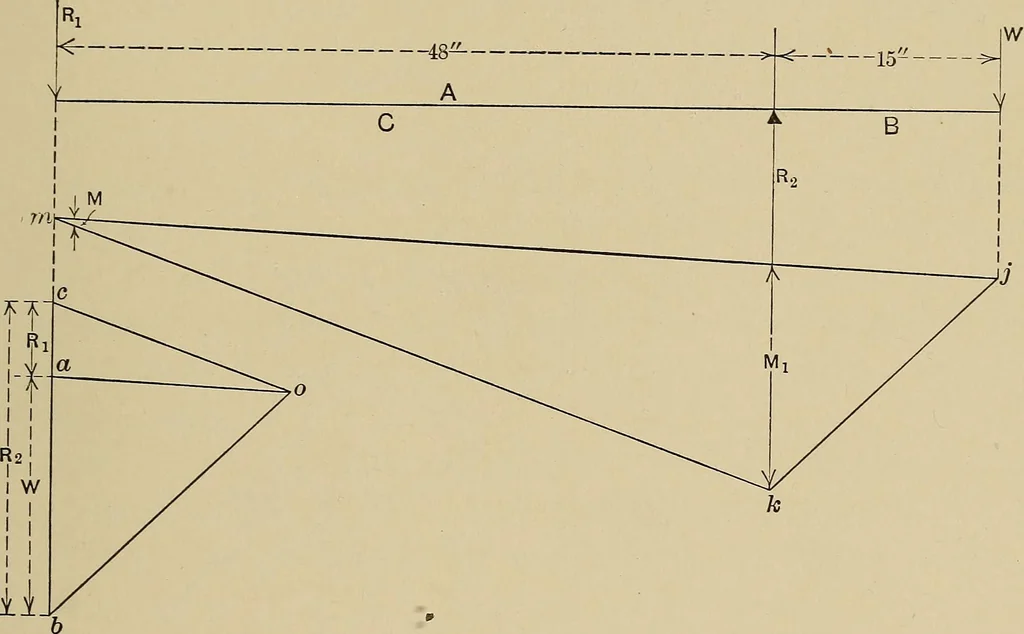

UNICULAR POLYGON 143 From a point m in the line of action of Ri draw a parallel tooa, intersecting the line of action of W at j. From j draw aparallel to oh^ intersecting the line of action of R2 at k, and fromk draw km as the closing line of the funicular polygon mjk.From 0 draw a parallel to km,… … Fig. 93- PROBLEMS 1. A beam 22 feet long supports a load of 1000 pounds at a point 6feet from the left end and one of 1200 pounds at 5 feet from the right end.In addition there is a uniformly distributed load of 100 pounds per foot.Construct the bending-moment and shear diagrams. What…
