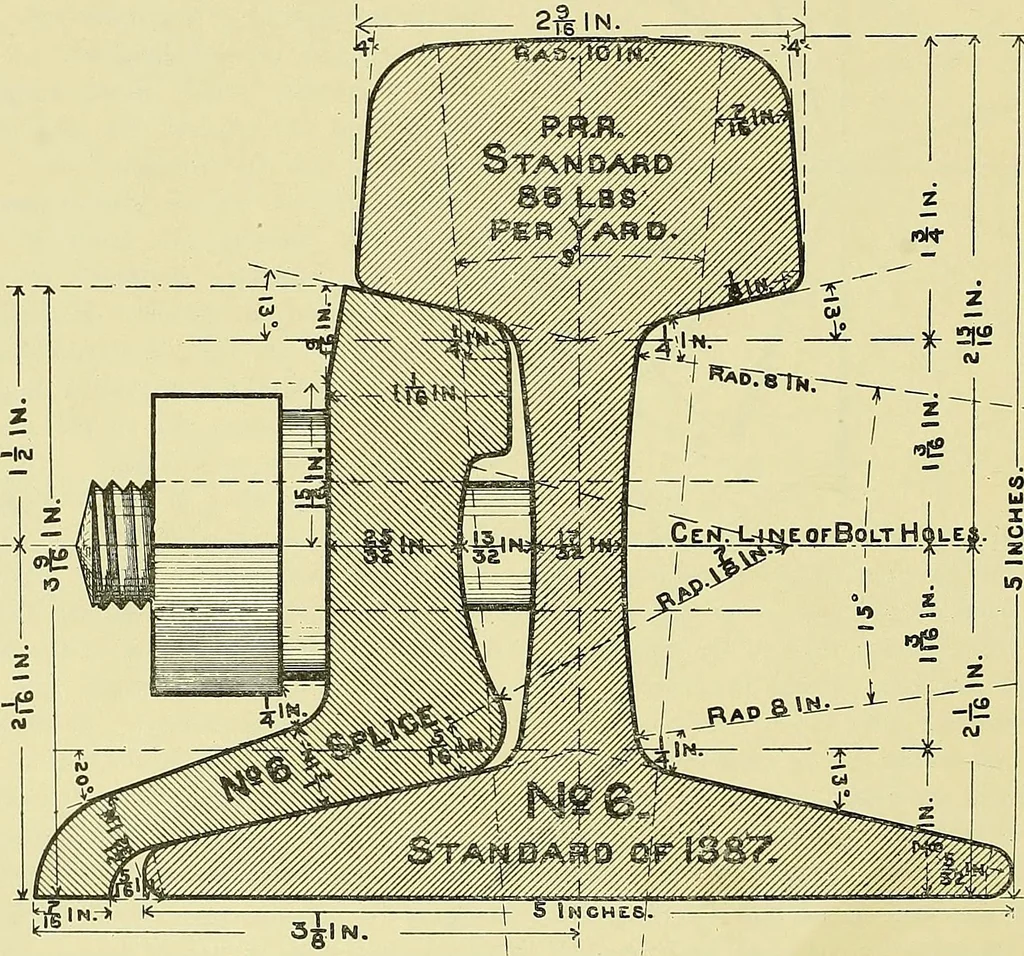

each other of the sections of railway wheels and rails. There was quite general agreement as to the following recommendations: a top radius of twelve inches; a quarter-inch corner radius; vertical sides sigr- eo- I 2^ IN. … to the web; a lower-corner radius of one-sixteenth inch, and, lastly, a broad head relatively to the depth. •Transactions A. S. C. E. January, 1891. EXERCISES FOR THE IRREGULAR CURVE. 39 CHAPTER V. THE HELIX.—CONIC SECTIONS.—HOMOLOGICAL PLANE CUEYES AND…
