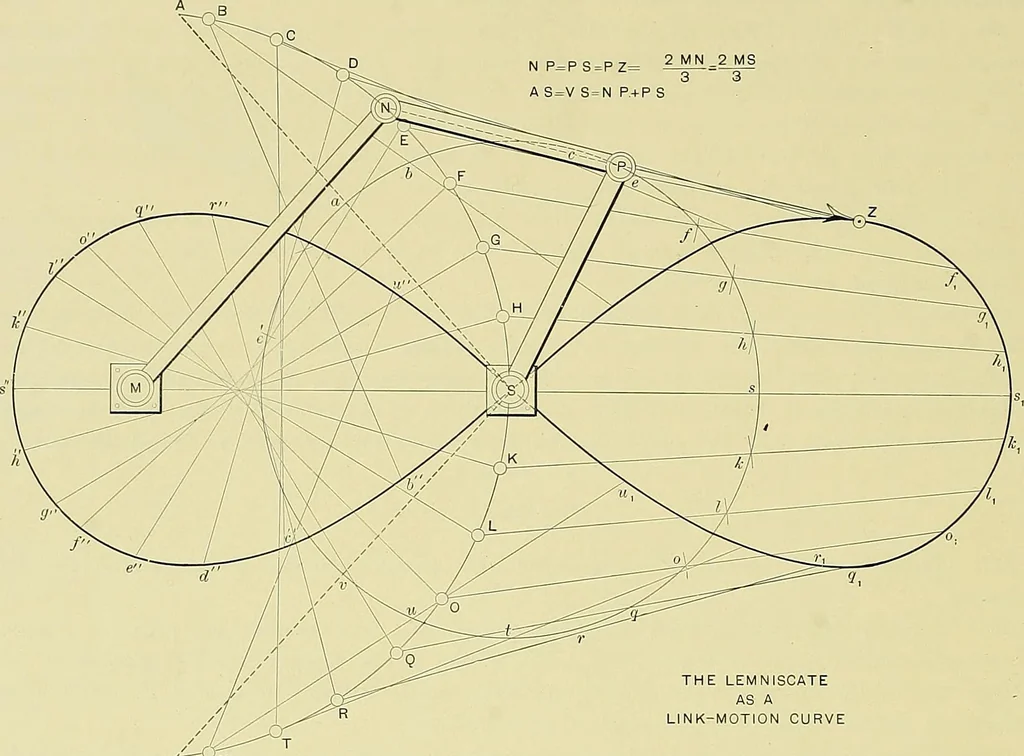

e from a given lixed point, is a circle having thelatter point as its centre. 52 THEORETICAL AND PRACTICAL GRAPHICS. 158. We have given, in Fig. 98, two links or bars, MN and S P, fastened at N and P by-pivots to a third link, N P, while their other extremities are pivoted on stationary axes at M… … THE LEMNISCATE AS A LINK-MOTION CURVE ■extremities, have a compound motion, in curves whose form it is not easy to jaredict and whichdiffer most curiously from each other. The figure-of-eight curve shown, otherwise the Lemniscateof Bernoulli, is the point-path of Z, the link NP being supposed…
