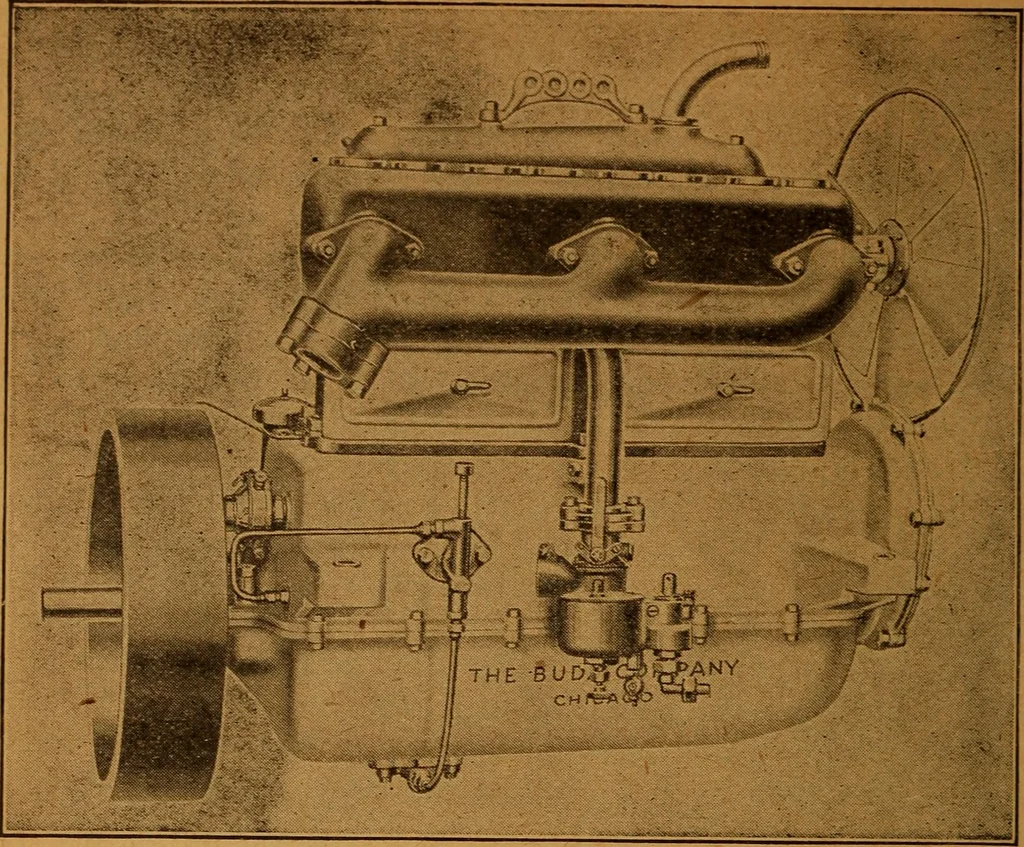

tion so that the sparkoccurs at the end of the compression stroke. At the extremeleft of the engine is the radiator fan (1) which is driven fromthe crank-shaft pulley (16), the belt (10), and the fan pulley(1122). This fan increases the amount of cold air that is drawnthrough the radiator, (mounted… … Fig. 19-a. Buda Four Cylinder Automobile Motor. Carburetor Side.
