Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 340

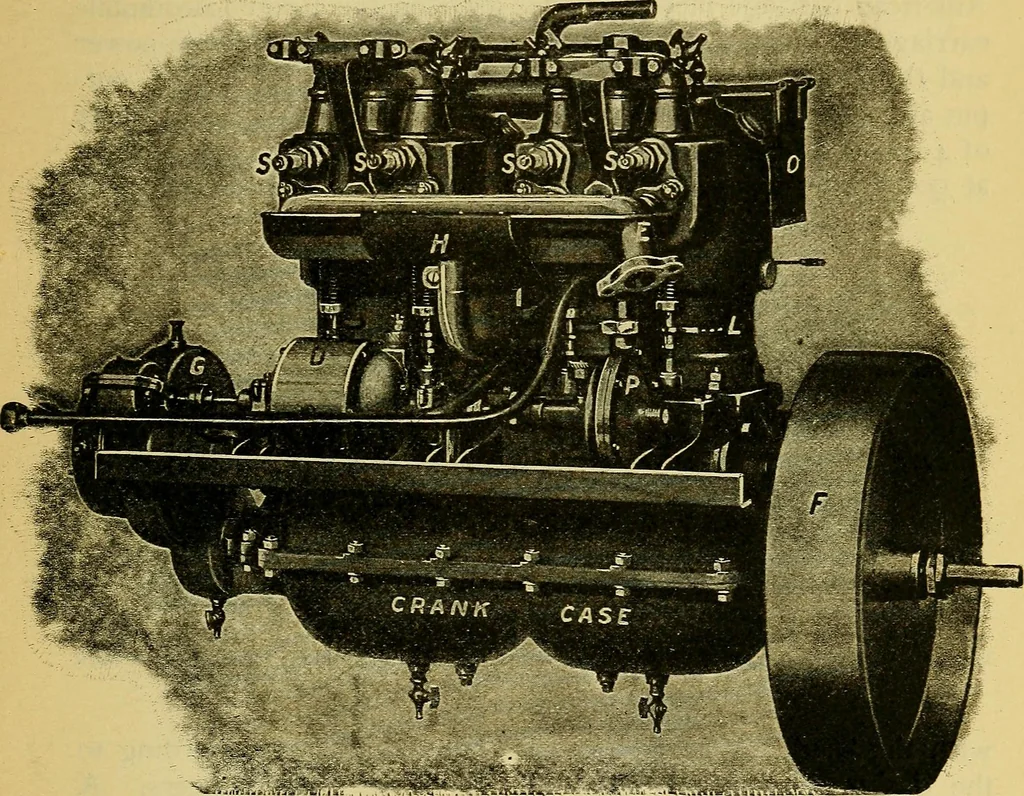

L,evassor were rejected in favor of some- GASOLINE MOTOR DEVELOPMENT. 327 thing yet to come that should be thoroughly original. The typicalEuropean shift-gear transmissions were also rejected for theplanetary and constantly meshed types, which may be said to beAmericas real contributions to… … Fig. 242.—Four-cylinder Motor of the Locomobile Carriage. D, dynamo; K,exhaust pipe; F, flywheel; G, governor; H, air heater for carburetter;L, lug on cylinder wall, as fulcrum for tool in removing exhaust valves;P, centrifugal pump; O, oil tank; S, S, S, S, spark plugs. other pioneers. To-day we…
