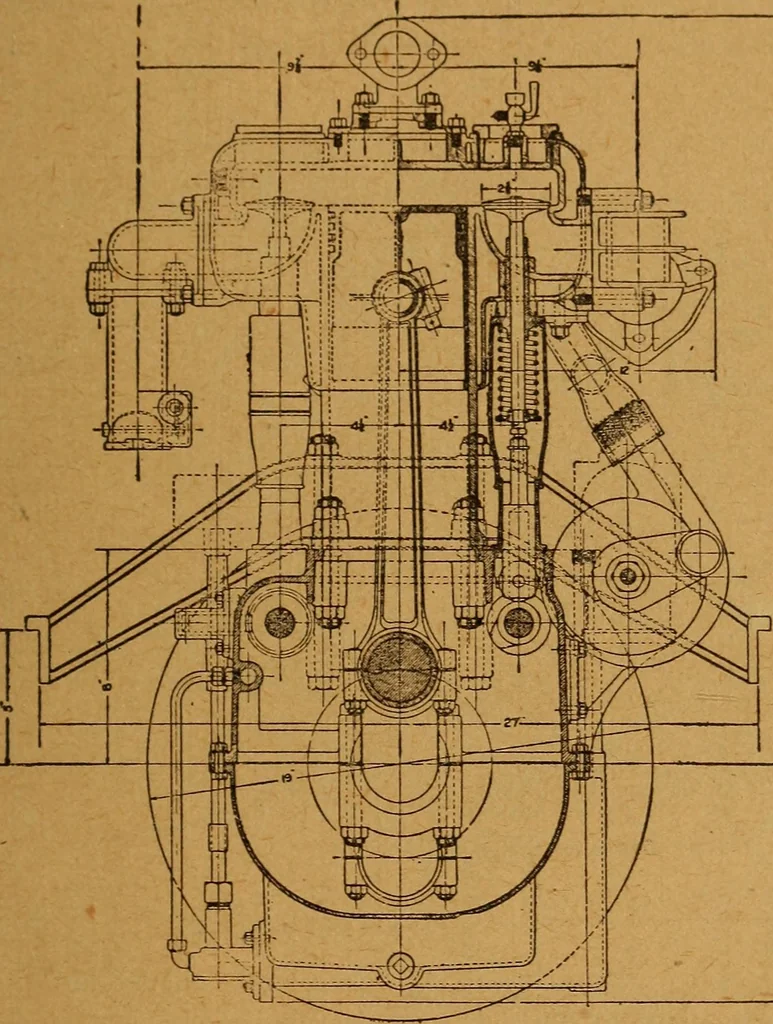

AM ENGINES 103 In this motor both the inlet and exhaust valves are locatedon the same side of the cylinder which arrangement classifiesthe engine as an L type, the extended valve pockets forming anL with the center line of the cylinder. In the motor shownby Figs. F-14—F-1S, the inlet and exhaust… … Fig. F-14. Cross-Section Through Wisconsin Truck Motor. T Type. several advantages over the L type, but as it requires twocam shafts, one for the inlet and one for the exhaust valves,it is not adopted by the builders of the cheaper grades ofautomobiles. Since the exhaust valves are on the…
