Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 145

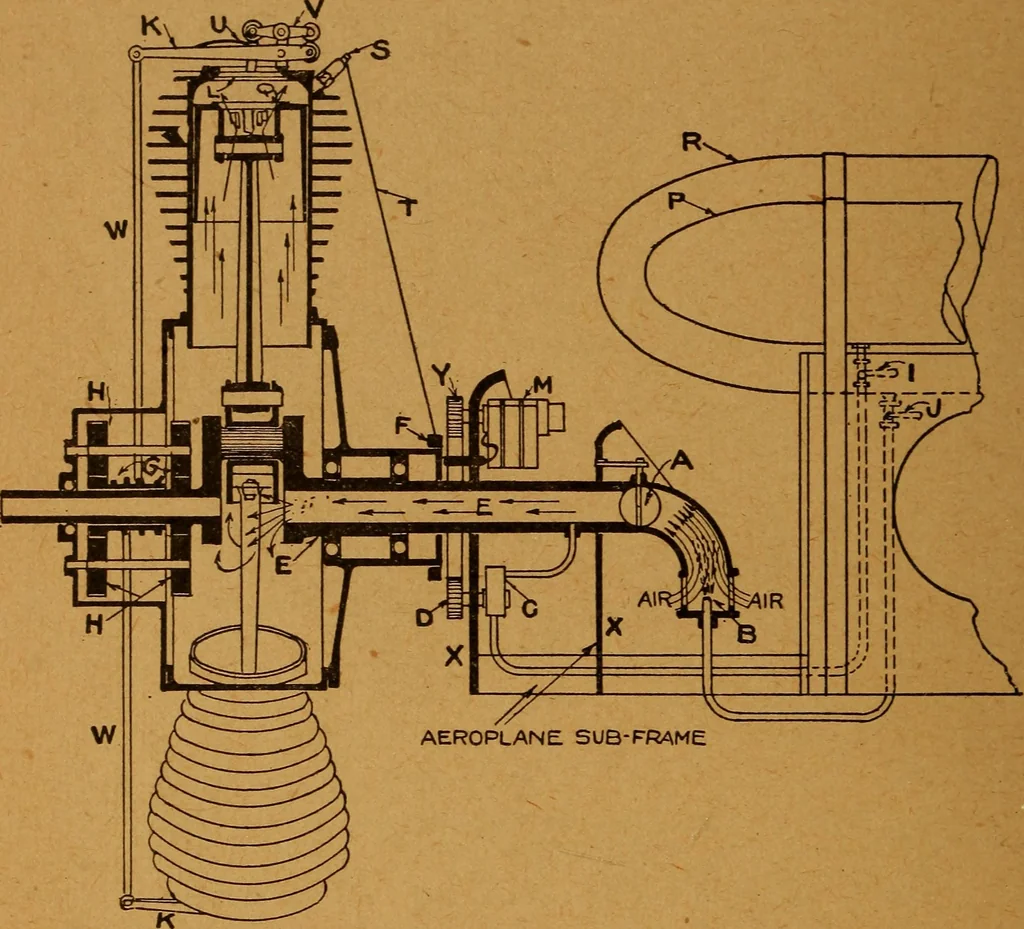

inlet valve in the piston head, in practically 140 GAS, OIL AND STEAM ENGINES the same way as in the Gyro motor, but unlike the lattermotor, the valve is lifted by the suction (automatic valve) andnot by the mechanical actuation of the connecting rod. Theinlet valve is balanced against the effects… … Fig. 53. Longitudinal Section Through Gnome Rotary Motor. carburetor through the hollow crank-shaft as described else-where. See Fig. 53. All exhaust valves are located in the cylinder head and areactuated by long push rods that are moved by individual camsin an extension of the crank case. The…
Internal combustion engines · Traction-engines
