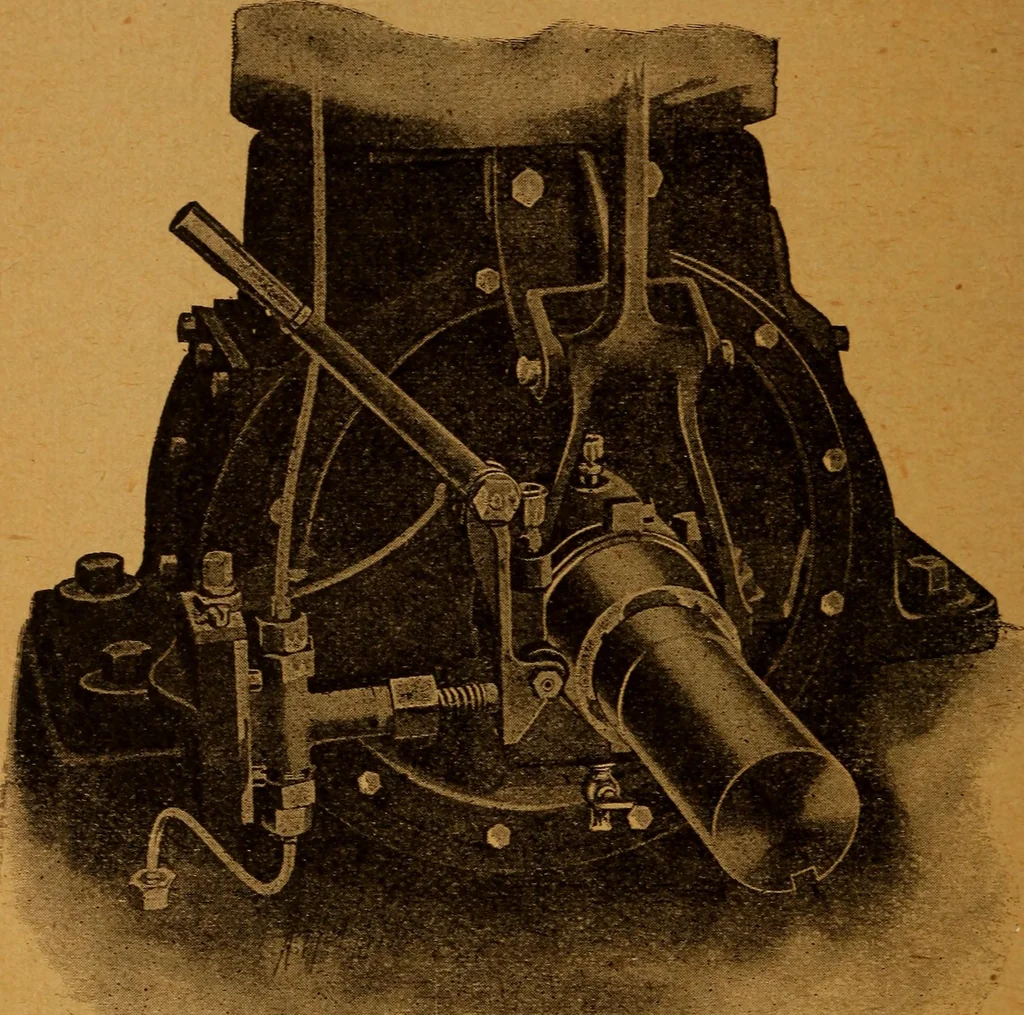

of its reaching the cylinderwalls. The spray of oil is ignited by the nickel steel plug (12),which is kept red hot by the explosions because the iron wallssurrounding it are protected from radiation by the hood (11). 192 GAS, OIL AND STEAM ENGINES By the burning of the oil spray in the air the… … Fig. 81. Fuel Pump and Mechanism of Remington Oil Engine. The operations above described take place in the cylinderand crankcase with every revolution. Each upstroke of thepiston draws fresh air into the crankcase and compresses theair transferred to the cylinder. Each down stroke is a powerstroke,…
