Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 265

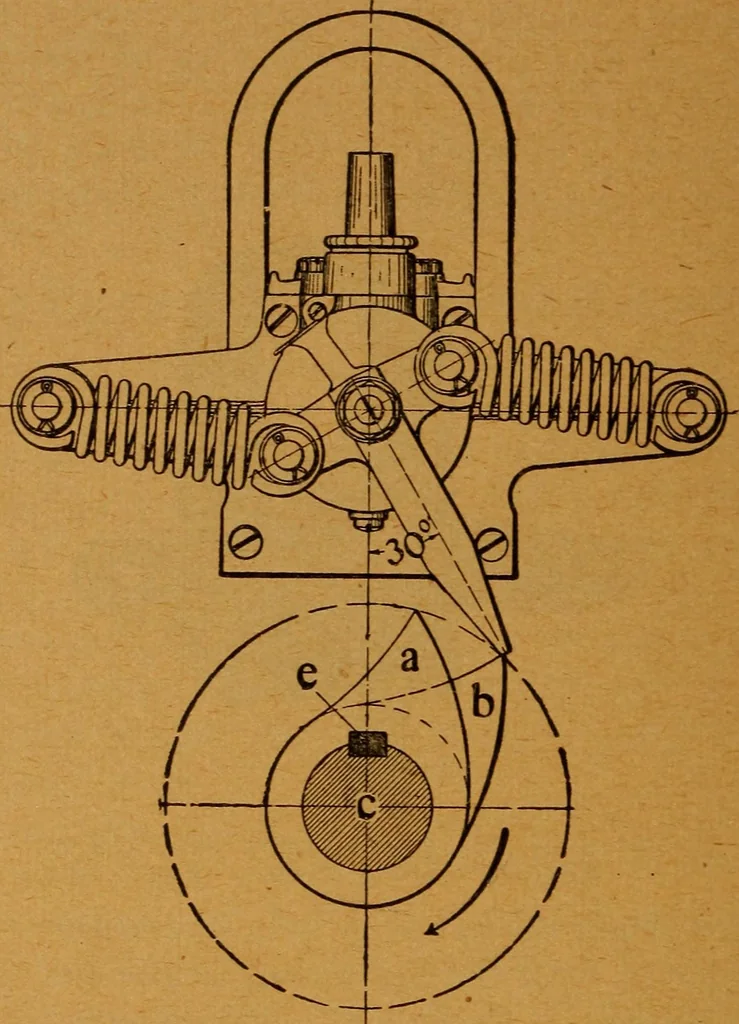

AM ENGINES each revolution with the result that a high voltage is generatedacross the high tension winding at the moment of the break,and a spark produced across the spark gap in the cylinder towhich it is connected. The quality of this spark, or in otherwords the heat value, depends among other… … Fig. 110. Diagram of Oscillating Magneto, Showing Cam and Trigger Arrangement. spark twice every revolution, two sparks can be obtained perrevolution. The timing of the spark is accomplished by open-ing the breaker earlier or later, by shifting the breaker housingnaturally with the unavoidable…
Internal combustion engines · Traction-engines
