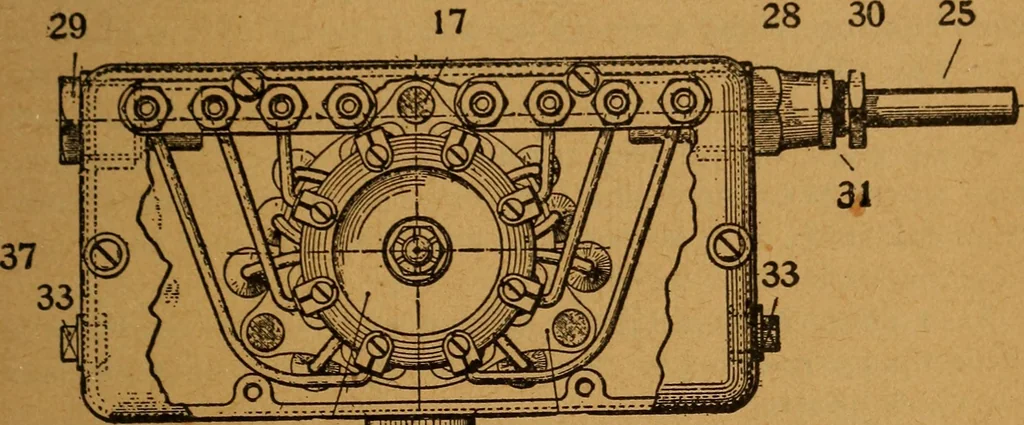

t supplies, the oil fed is in all cases proportionalto the engine speed; overloads are thus automatically takencare of. GAS, OIL AND STEAM ENGINES 291 The circular arrangement of the elements of the BoschOiler permits the device to be driven by a single shaft, andthe oil is forced through the feeds… … 20 ^^ 13 Top View of Bosch Force Feed Oiler,ranged concentrically about the drive shaft in such a mannerthat the pump plungers form a circle around the circle formedby the piston valves. The pump cam disk 20 and the valve cam disk 22 are set onthe drive shaft at other than a right angle with its…
