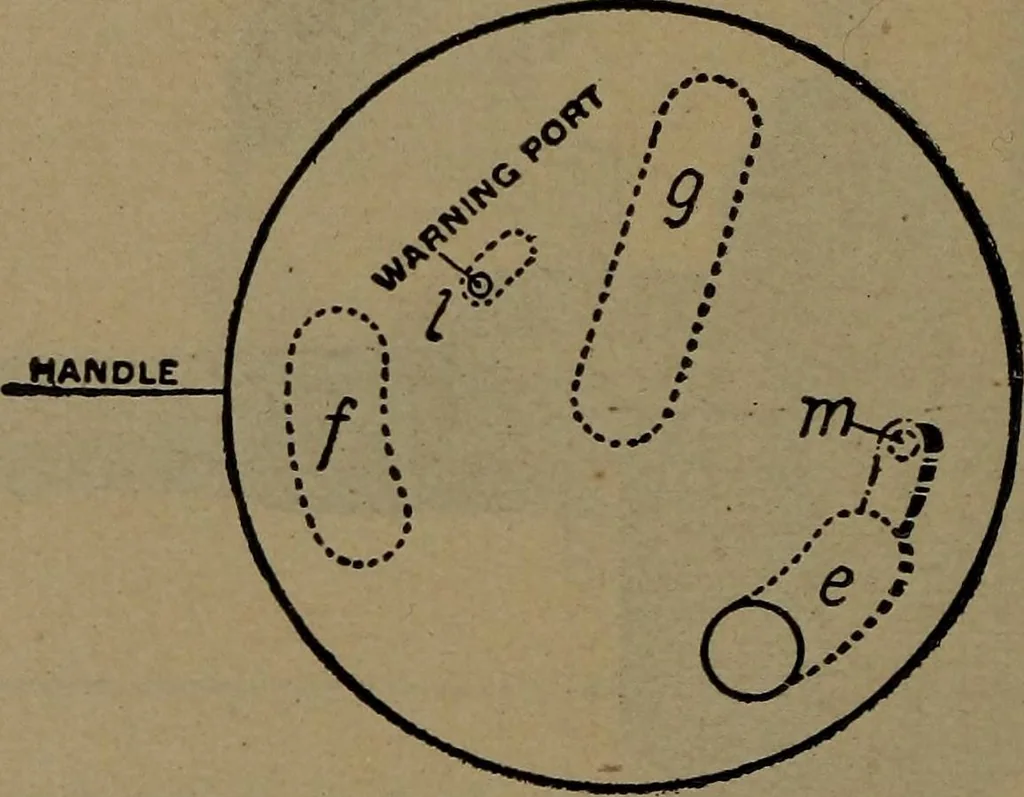

Fig. 76.—S-6 Independent Brake Valve, Sectional View. 240 RUNNING POSITION, S-6 TYPE center is the exhaust port leading down directly to theatmosphere. Port k is the warning port leading to the atmosphere. RUNNING POSITION, S-6 TYPE 654. The handle of the S-6 independent brake valveshould be… … Fig. 76a.—Rotary Valve S-6 Independent Brake Valve. tion through the distributing valve release pipe betweenthe application cylinder of the distributing valve and portI of the automatic brake valve, so that the distributingvalve can be released by the latter. With both the auto-matic and…
