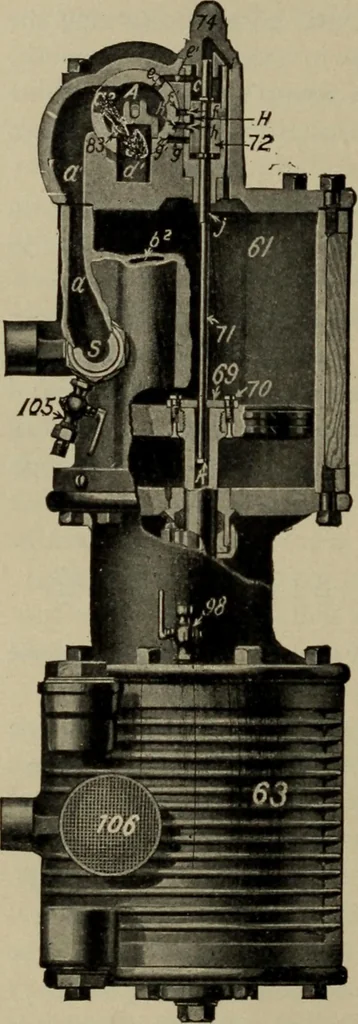

is in turnoperated by the main steampiston 65 by means of thereversing rod 71 and thereversing plate 69. When steam enterschamber a main slide valve83 and pistons 77 and 79are moved to the right, un-covering passage B in thevalve seat and permittingsteam to flow through pass-age B and B-2, which… … NINE AND ONE-HALF INCH AIR PUMP 161 inder, reversing plate 69 has engaged the button on theend of reversing rod 71 and moved reversing valve 72 toits lower position. Chamber D is now connected with main exhaust passageD through ports H reversing valve exhaust cavity H andports F F. Therefore as…
