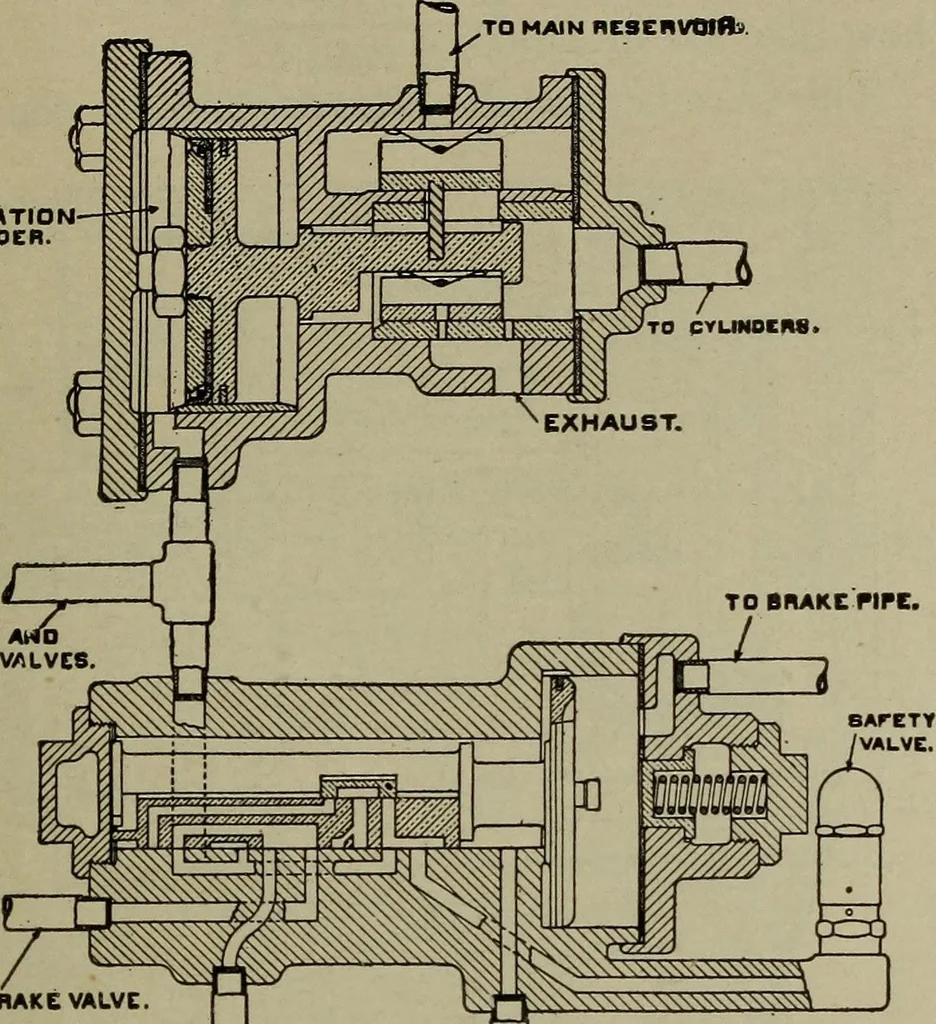

and to the brake valvesthrough the application cylinder pipe. EXPLANATION OF DIAGRAMMATIC VIEWS OF THE DISTRIBUTING VALVE • To simplify the tracing of the ports and connectionsthe various positions of this valve are shown in diagram-matic views, that is, the valve is distorted to show the… … PRESSURE CHAMBER. Fig. 55.—Diagrammatic View of the Distributing Valve and DoubleChamber Reservoir. 200 THE DISTRIBUTING VALVE explaining the operation clearly, instead of showing exactlyhow they are designed. The chambers of the reservoir are for convenience in-
