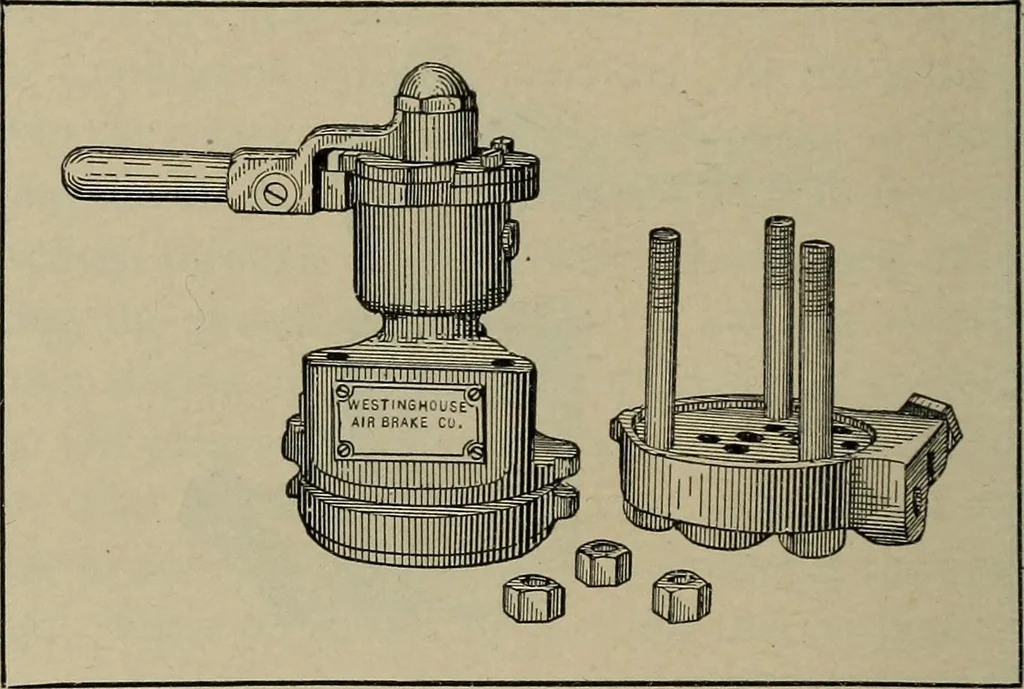

s in communication at one end with exhaust porth; groove e in the face of the valve communicates at oneend with a port through the valve. 238 THE &-6 INDEPENDENT BRAKE VALVE This groove is always in communication with a groovein the seat, connecting with supply port b and through theopening… … Fig. 75.—S-6 Independent Brake Valve Removed from Pipe Bracket. which extends through the rotary valve and connects withport k in full release position. Referring to the valve seat, port b leads to the reducingvalve pipe; port a leads to that portion of the distributingvalve pipe which connects to…
