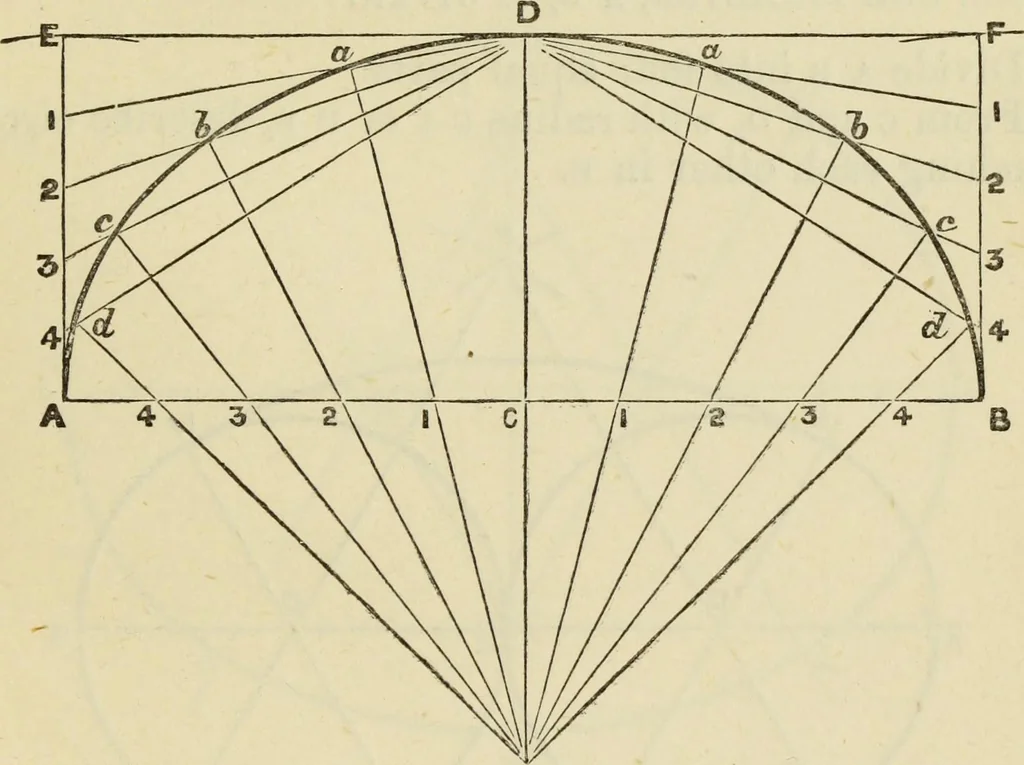

curve of the Ellipse mustbe traced by hand through the intersections. THE CONSTRUCTION OF GEOMETRICAL FIGURES. 313 Fig. 122. To CONSTRUCT A SEMI-ELLIPTICAL ARCH, OFWHICH A B IS THE SPAN, AND C D THE HEIGHT. At A and b erect perpendiculars, and at d draw ahorizontal, thus constructing the rectangle… … Fig. 122. From D, draw lines to the points, 1, 2, 3, 4, 5, in thelines E A and f b. From G, draw lines through the points 1, 2, &c., inthe line a b, and produce these lines until they cut thoseof corresponding numbers drawn from d, to the pointsiu the lines e a and f b. Thus :—G 1 will cut d 1…
