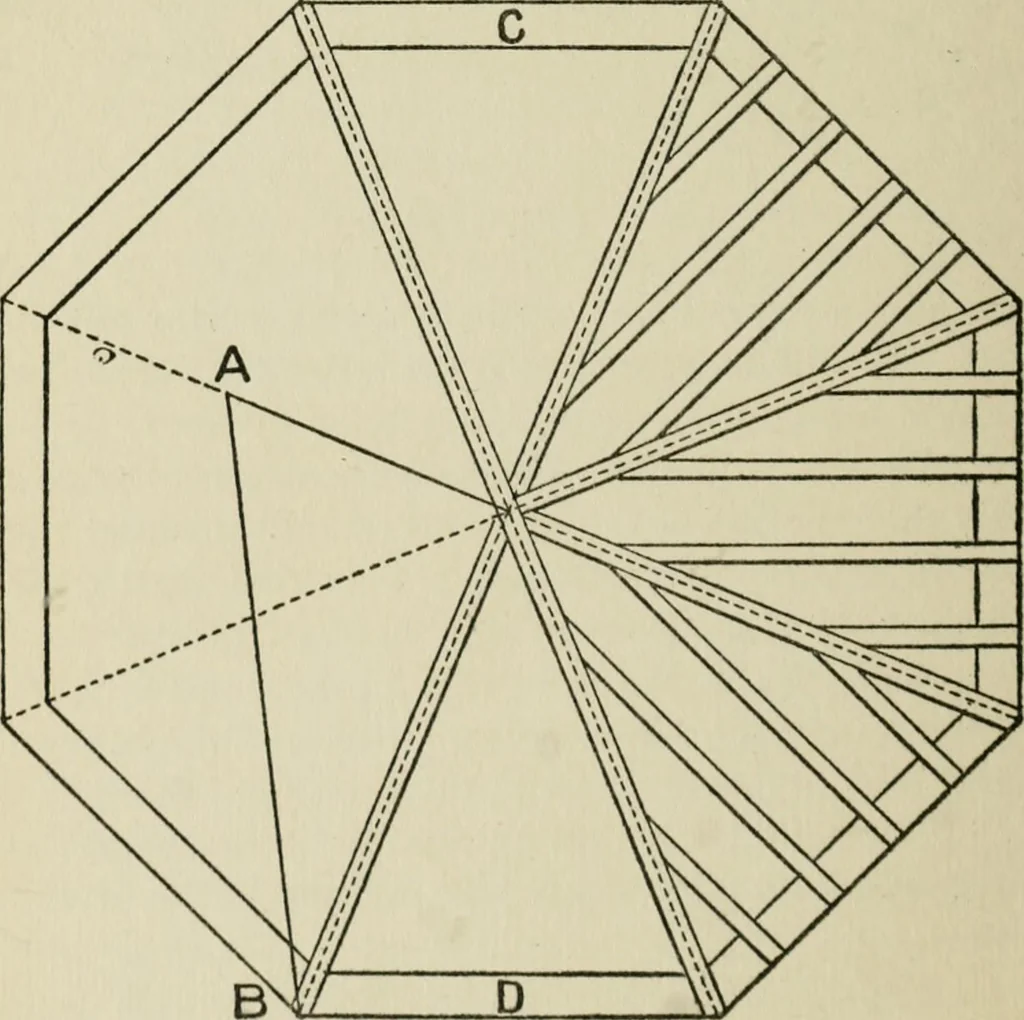

showing generally the positions of 140 PRACTICAL CARPENTRY the parts herein before described, as particular-ized in the accompanying reference—A, valley;B, hip; C, jack rafters; D, ridge; E, eaves;F, common rafters; G, gable; H, dormer; P,purUns; W, wall plate. Octagonal Roofs.—Fig. 158 represents… … FIG. 158
