A practical manual of house-painting, graining, marbling and sign-writing : containing full information on the processes of house-painting in oil and distemper, the formation of letters and practice of sign-writing, the principles of decorative art, a course of elementary drawing for house-painters, writers, etc., and a collection of useful receipts ; with nine coloured illustrations of woods and marbles, and numerous wood engravings (1888)
Davidson, Ellis A., d. 1878 · London : C. Lockwood & Son · leaf 368

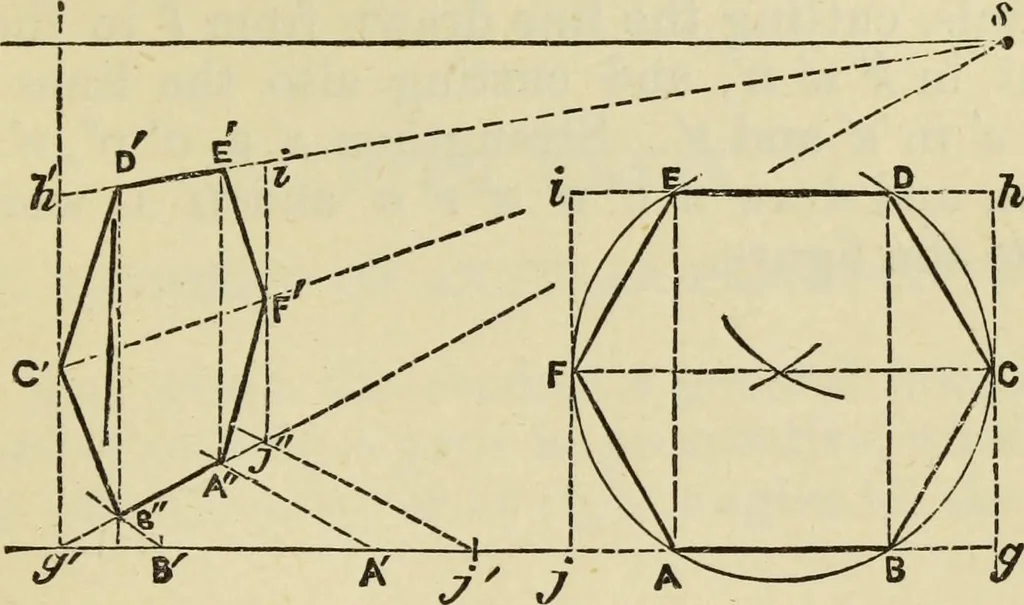

is*vO be placed, put this enclosing figure into perspective in/)he following manner :— At / (the fixed point) erect a perpendicular, and onit mark the heights g c and c corresponding withq c and c ^ in the elevation, and from / c and H draw PERSPECTIVE OF TRIANGLES AND POLYGONS. 341 lines to the… … Fig. 142. in b a and J. From / a and b erect perpendiculars,cutting the lines previously drawn from c and U in yi e and d. Strengthen b a and ed, and draw b c,c D, e f, and f a, which will complete the figure. Fig. 143 shows the method of drawing a polygon, inthis case an Octagon, when lying…
House painting · Sign painting · Lettering
