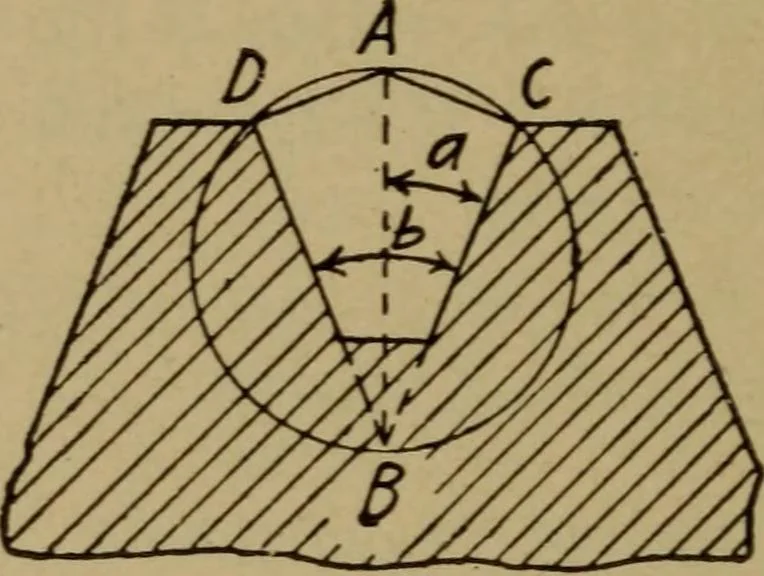

Fig. 138. Fig. 139. each }/2 ill- and angles C and D are each 90°. Find angle a andangle h. Angle b is that used in constructing the acme thread.Remember how this figure is drawn, to get this angle for an acmethread. 43. In Fig. 140, find the length of the center lines of rafters A
