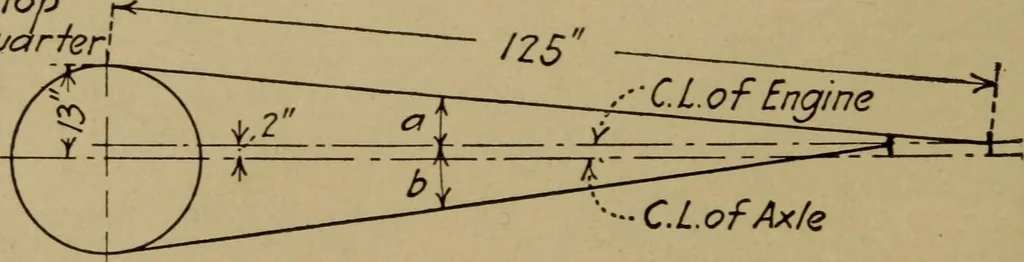

Fig. 147. 54. The shank on a drill socket has a taper of % in. in 12 in., is% in. in diam. at the small end and 5 in. long. What is itsdiameter at the large end (to the nearest 64th of an in.) and theangle between the sides? 55. If a piece of work is to be planed to a taper of j^f ^ in. in 1 in.for… … Bo/fom Quarfer -CLofAx/e Fig. 148. 56. To what distance would you set dividers for laying off 4equally spaced centers on an 8-in. diam. circle? 57. In Fig. 147 showing two views of a wedge find angle a indegrees and minutes. How high would you block up the thinend for planing the tapered surface?…
