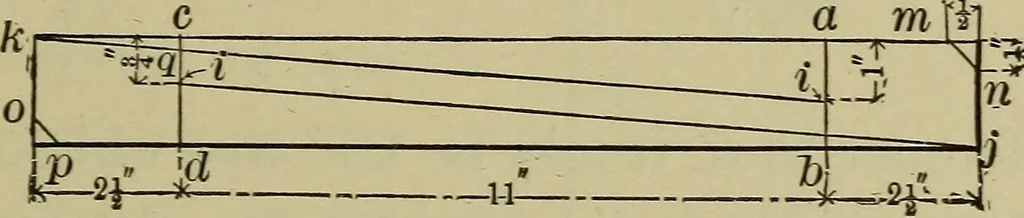

and theElevation, face B, the working-edge. The finished piece isshown by Fig. 178. 155. Lay off the fines ab and cd on face B, Fig. 177. Pro-ject ab across face A, as shown by ae, and project cd across BENCH WORK. 97 face C (not shown), and from these, project on face D linessimilar to ab and cd^… … ELEVATION (FACE B.) B Fig. ITSScale, 1>^=I^
