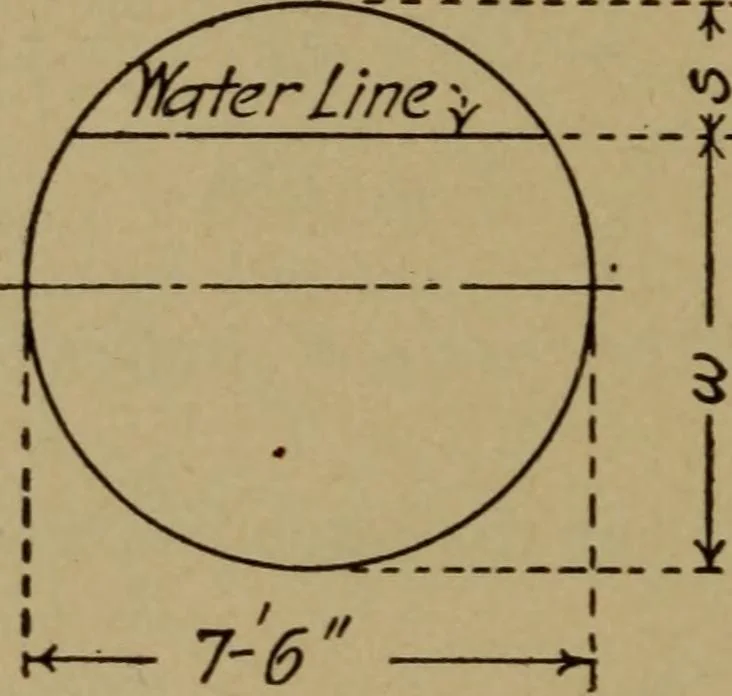

rea of the steam segment, (2)the area of the water segment, and (3) the net water area whenthere are 465 2-in. outside diam. (0. D.) tubes. 176 MECHANICS AND ALLIED SUBJECTS 62. Find the depth of a F thread in terms of the number ofthreads per in. Triangle ABC, Fig. 152, is equiangular andtherefore… … Fig. 153. segment or S to W is as 2 is to 7, thus W Find (1) the height and area of the steam segment; (2) the height and area ofthe water segment; (3) the net area of the water segment afterdeducting area of the tubes. 64. Determine the distance in in. between the center of the
