Notes on practical mechanical drawing, written for the use of the students in general engineering drawing in the University of Illinois (1907)
Wilson, Victor Tyson, 1864- [from old catalog] · State College, Pa., The author · leaf 156

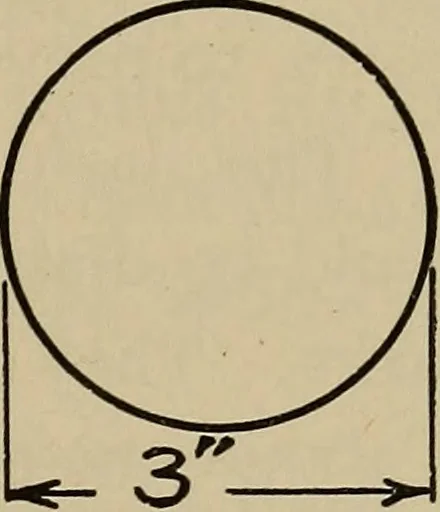

Ff 2 - 62-6 dimensions are close together, it is difficult to ascertain towhich dimension line a figure belongs. Although the prac-tice of writing a dimension figure above the line is commonin structural steel work. But on the other hand dimensions should not be crowdedbetween limits too narrow to…
Mechanical drawing
