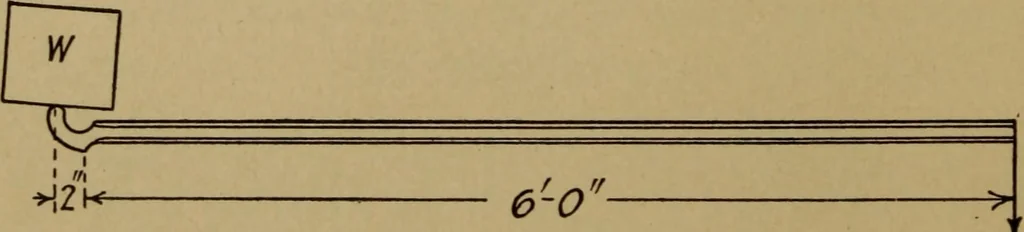

t*-/0^ W-lOOO-lb. Fig. 59. Fig. 60. 1-t Fig. 61. F^IOO-Ib] F^ao-Jb, ^ 10-^ I/O 100 Fig. 62. -A … Fig. 63. f-60-/b CALCULATION OF LEVERS 45 36. In the lever indicator system shown in Fig. bS, find the mo-tion produced at S by a motion of .040 in. at G. 37. Show how you could redesign the levers so that a motionof .040 in. at G would produce at S twice the motion calculatedin the problem above.
