Hale, Joseph W. L. (Joseph Woodwell Ledwidge), 1886- · New York [etc.] McGraw-Hill book company · leaf 83

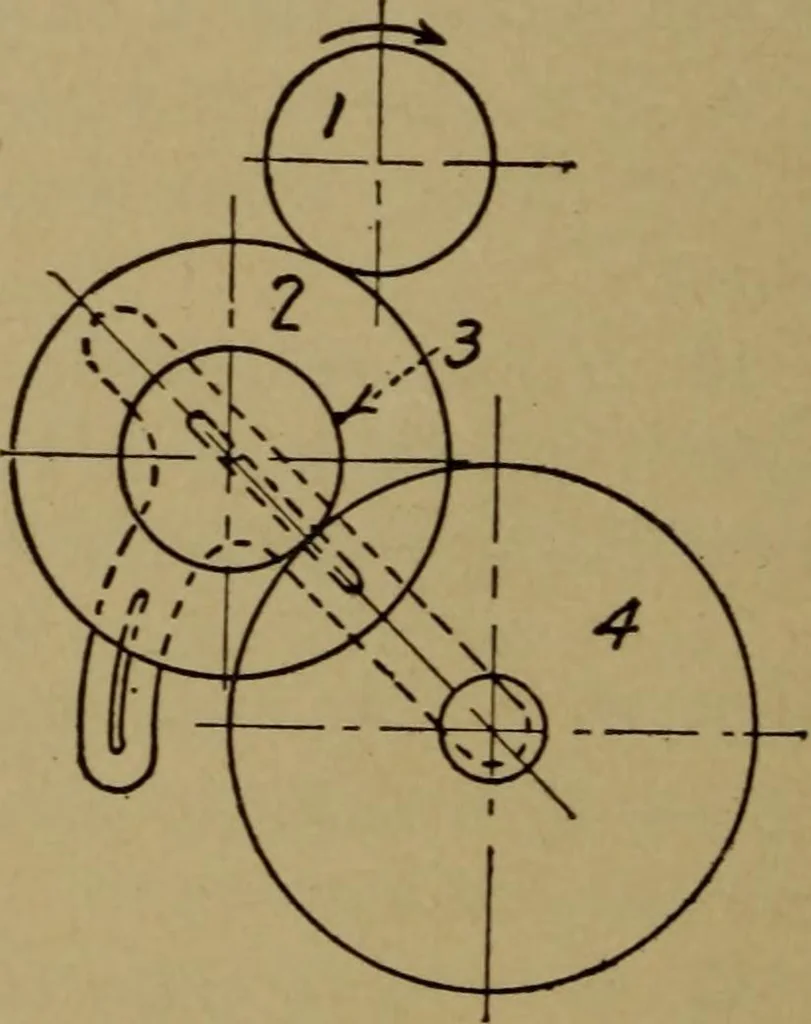

Fig. 88. Fig. 89. 16. What is the direction of rotation of gear 2 according toFig. 87? Find the number of teeth in gear 2. 17. Fig. ^^ shows a train of simple gears. In what direction willgear 2 turn? Find the speed ratio of gears 1 and 2. 18. Fig. 89 shows a train of compound gears. In what…
Mechanics, Applied
