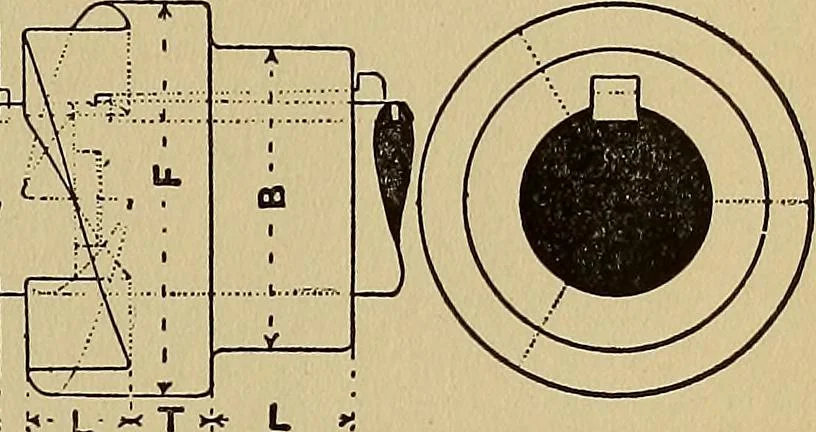

tion Clutch. In the friction clutch,shown in Fig. 194, there is a sleeve. A, which iskeyed to the shaft and also attached to the frictionband, B, by means of bolts, as shown. The frictionband, B, encircles the boss, C, of the wheel or pul-ley, the latter being loose on the sleeve, A. The band, B,… … ♦T^l* E ><T >^-L ^ i<- L ^ T >i* Fig. 193—Spiral-jaw Detachable Coupling.
