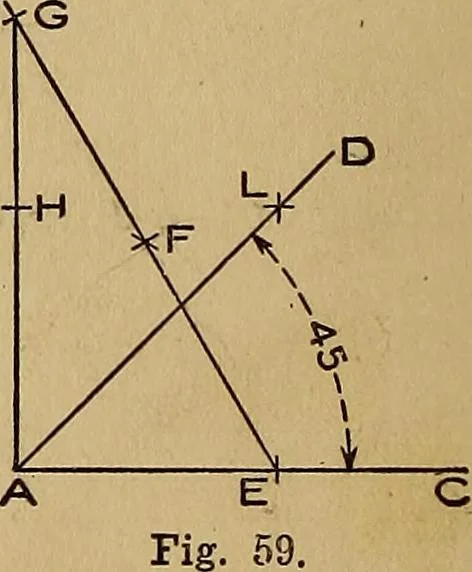

L, draw AD through L. The angle DAC is 45°—Fig. 59. To construct an angle of 90°. With radius AEand centers A and E, describe arcs intersecting atF, with the same radius and center F describe thearc AGD, with radius AE, lay off AG and GDand join DA. The angle DAG is 90°—Fig. 60. 28 GEOMETEICAL…
