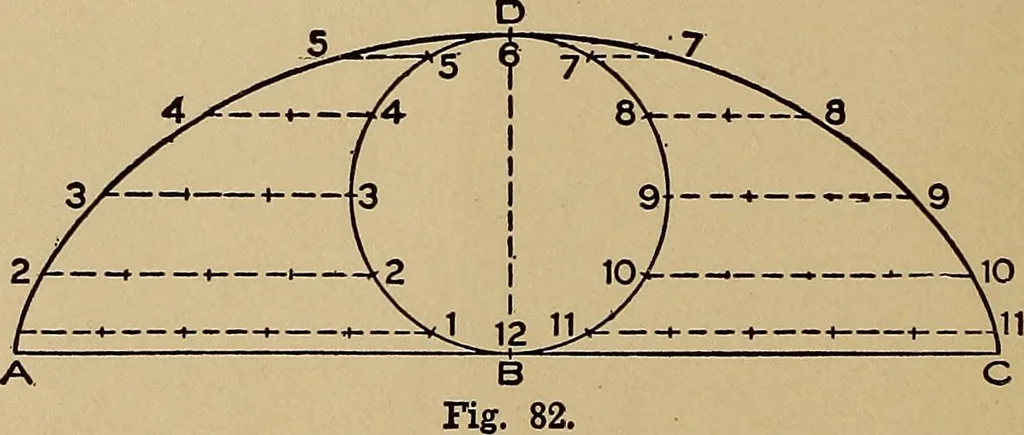

Fig. 81. ference of the generating circle parallel to theline ABC and on both sides of the circle. Lay offone division of the generating circle on the lines … 5 and 7, two divisions on the lines 4 and 8, threedivisions on the lines 3 and 9, four divisions onthe lines 2 and 10, and five divisions on the lines GEOMETRICAL PROBLEMS 35 1 and 11. A line traced through the points thusobtained will be the cycloid curve required. To develop a spiral with uniform…
