Practical mechanical drawing and machine design self taught .. (1907)
Westinghouse, Charles. [from old catalog] · Chicago, F. J. Drake & co. · leaf 51

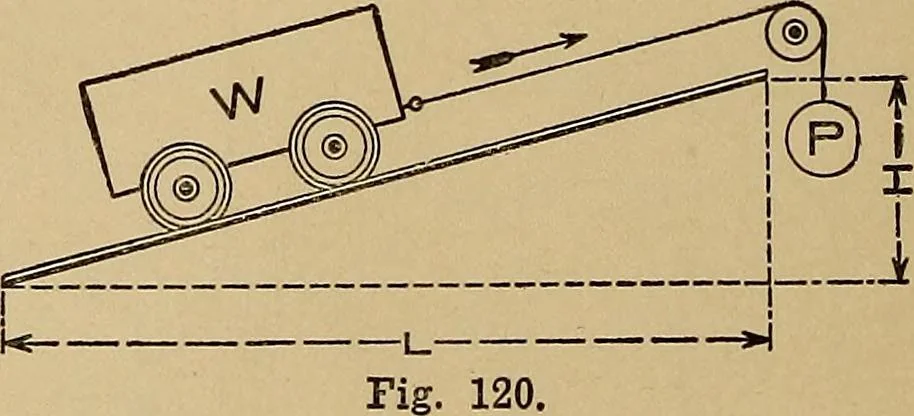

To find the weight that will be balanced by agiven power. When the rope is attached to thefixed block, multiply the power by twice the num-ber of movable pulleys. When the rope is attached to the movable blockmultiply the power by twice the number of mova-ble pulleys plus 1. The Inclined Plane. The… … ciple it consists of any right line not coincidingwith, but laying in a sloping direction to, thatof the horizon, the standard of comparison ofwhich commonly consists in referring the rise toso many parts in a certain length or distance, as1 in 100, 1 in 200, etc., the first number represent-ing…
Mechanical drawing · Machine design
